When you're planning servo stepper motion control for a CNC mill, the biggest question isn't just torque-it's how many axes you need to move and whether you want a single powerful motor or a ready-to-wire multi-axis system. These two kits sit at opposite ends of that decision: one is a braked 3.8kW servo designed for a heavy single axis, and the other is a four-axis 750W system with a Mach3 motion controller.
Quick verdict
Choose the single 3.8kW braked servo kit if you're building or upgrading one high-load axis, such as a vertical Z-axis, and need holding torque from an integrated brake. Choose the four-axis 750W Mach3 kit if you're outfitting a small CNC mill or router with four coordinated axes and want a motion-control path included.
Listed price and key specs
| Product | Listed Price | Price Bar | Key Specs |
|---|---|---|---|
| NEW 220V 3.8KW 15NM AC Servo Motor With Brake Driver Kit 2500RPM NEMA52 3M Cable | USD 746.51 | 3.8kW, 15Nm, 2500RPM, NEMA52, brake | |
| 4 Axis 750W AC Servo Motor Driver Kit 2.4NM & Mach3 Motion Controller CNC Mill | USD 1,499.99 | 750W, 2.4Nm, 3000RPM, 4-axis, Mach3 |
The listed price spread between the two is USD 753.48, and the single-axis kit carries the lower price tag.
Where each kit wins
The 3.8kW brake servo kit wins on raw torque and holding power. Its 15Nm torque rating and 3.8kW power are aimed at moving and holding a heavy load, and the built-in brake adds security for vertical axes. The included 3M cable and 2500RPM rating round out a package that focuses on one demanding axis.
The four-axis 750W Mach3 kit wins on axis count and motion control. You get four servo motors, drivers, and a Mach3 motion controller, which can be a faster route to a multi-axis CNC retrofit. The 3000RPM rated speed is higher on paper than the single servo's 2500RPM, though each motor's torque is lower at 2.4Nm.
In-depth look at each kit

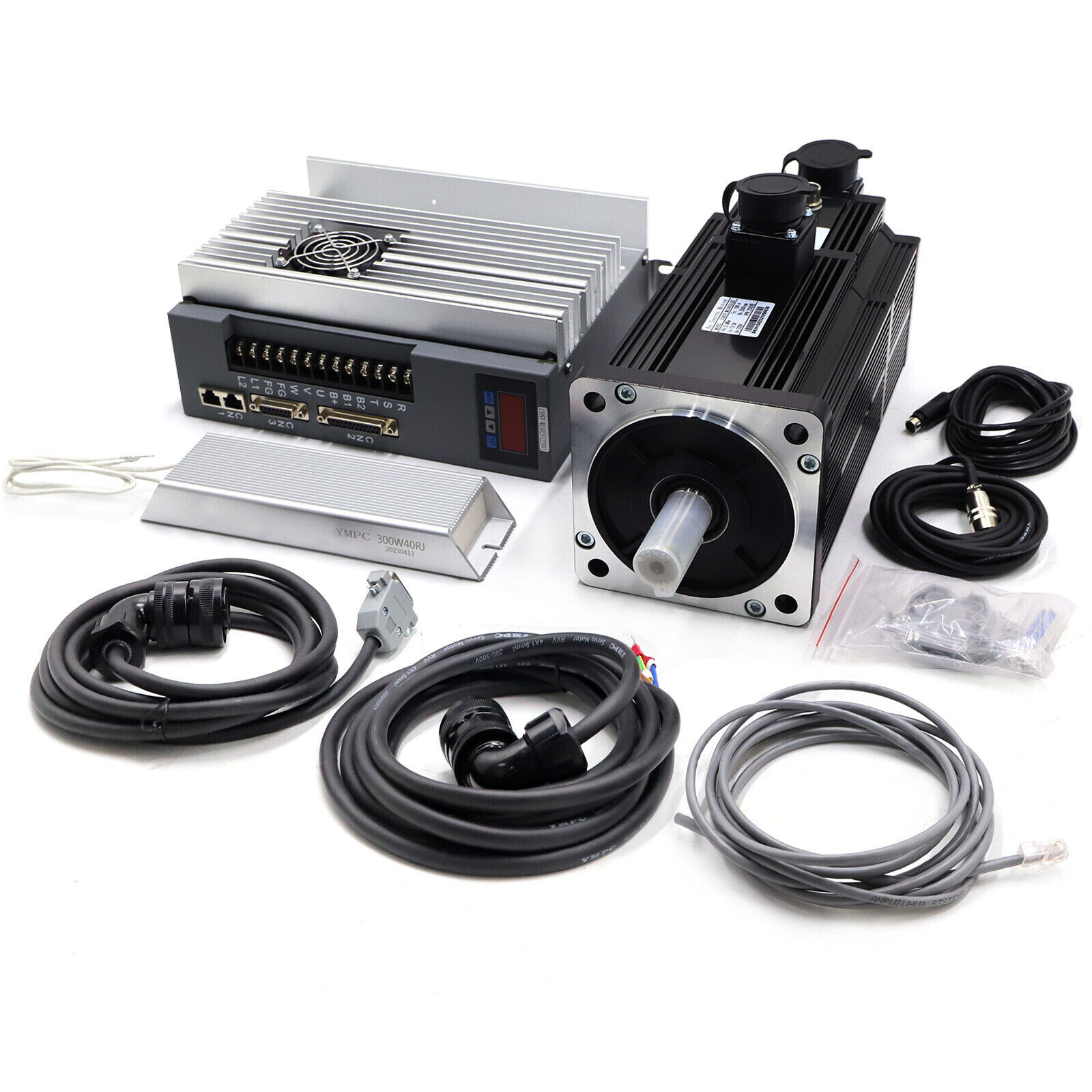

NEW 220V 3.8KW 15NM AC Servo Motor With Brake Driver Kit 2500RPM NEMA52 3M Cable
This is a single high-torque motion package. The 15Nm rated torque and 3.8kW power put it in a different class from a typical 750W servo, and the integrated brake is a practical feature when your axis could drift or drop under power loss. At a listed price of USD 746.51, it's built around one motor, one driver, and a 3M cable-so if you need four coordinated axes, you'll be buying three more of these or a separate controller. Use it for a single heavy axis or a machine that doesn't require multi-axis coordination.

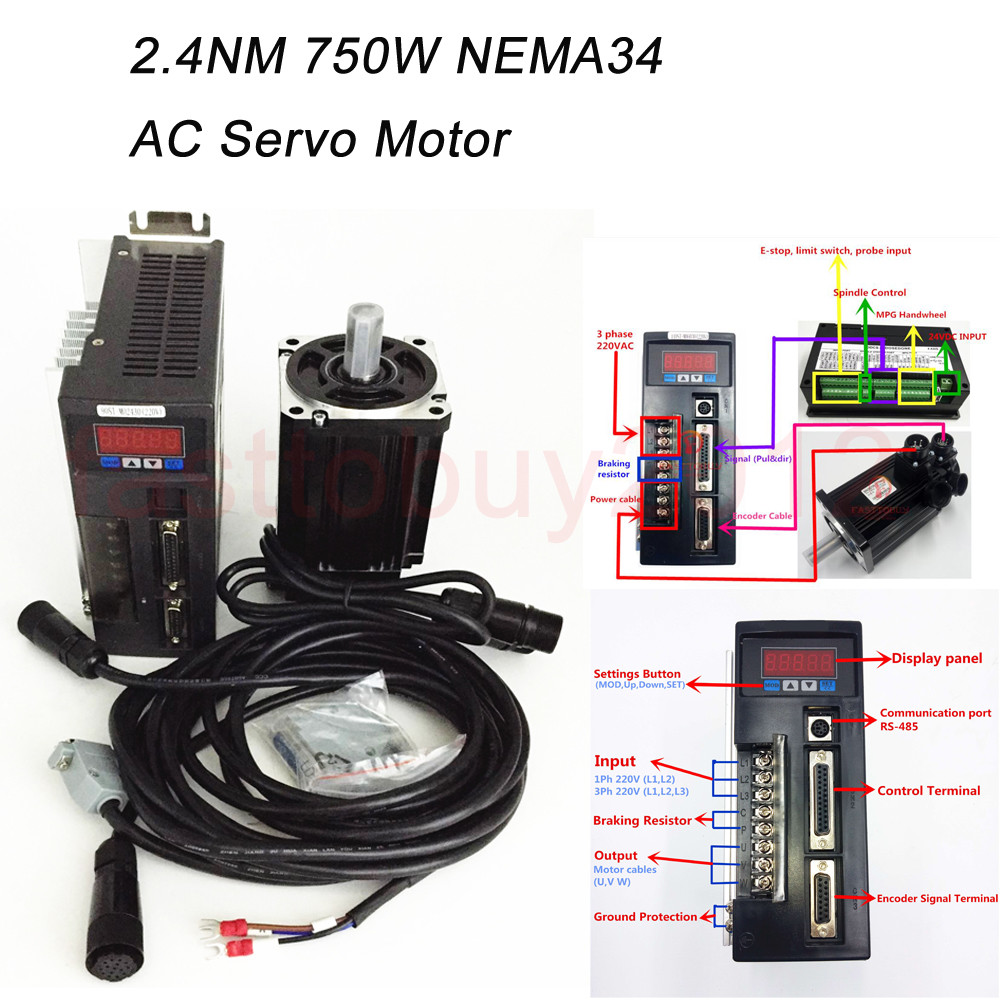

4 Axis 750W AC Servo Motor Driver Kit 2.4NM & Mach3 Motion Controller CNC Mill
This is a four-axis bundle: four 750W servo motors with drivers and a Mach3 motion controller, listed at USD 1,499.99. The 2.4Nm torque per motor is lower than the single braked kit, but the 3000RPM rated speed is higher, and the included controller gives you a much shorter path to a four-axis CNC machine. If you're retrofitting a small mill or building a machine from scratch, having the controller and drives in one package can simplify wiring and setup. The tradeoff is the higher listed price and lower torque for heavy cutting passes or large gantries.
Final choice by use case
For a single-axis application that needs real holding torque-say, a hefty Z-axis or a rotary axis-the 3.8kW brake servo kit is the one to build around. For a small-to-mid CNC mill where four independent axes with a Mach3 controller matter more than per-axis torque, the four-axis 750W kit is the more complete starting point.
