When you're shopping in vfds soft starters motor controls, the main decision isn't which brand looks better-it's whether your motor needs to change speed or simply start smoothly. The 7.5KW 10HP VFD is built for variable speed and three-phase output. The 1/2/4/6/8KW soft starter is built for smoothing startups. The right pick depends on what you want the motor to do after it's running.
Quick Verdict
If you need adjustable speed for a CNC spindle, grinder, or compressor, the 7.5KW 10HP 220V Variable Frequency Drive is the clear choice. If your motor runs at one speed and just needs a gentler startup, the 1/2/4/6/8KW Soft Starter does that for a much lower price.
At a Glance
| Feature | 7.5KW 10HP VFD | 1/2/4/6/8KW Soft Starter |
|---|---|---|
| Price | USD 158.90 | USD 48.59 |
| Input voltage | 220V, 1 or 3 phase | 110V-380V |
| Output | Single to three phase | Single phase |
| Control method | SPWM variable frequency | Adjustable soft start time |
| Best for | Speed control plus conversion | Smooth start-up, no speed change |
The Main Difference
A VFD changes the frequency and voltage delivered to the motor, which changes its speed. A soft starter only ramps up the voltage during the start phase and then lets the motor run at its normal speed. So if your process needs variable throughput-like a spindle speed change between jobs-you need the VFD. If your motor just needs a reduced inrush current when starting, the soft starter is the more targeted tool.
Where Each Wins
The 7.5KW VFD wins when you need:
- Variable frequency output to adjust motor speed.
- A three-phase output from a 220V feed.
- Support for constant-torque loads like hard-starting compressors, HVAC units, CNC routers, and spindles.
The 1/2/4/6/8KW Soft Starter wins when you need:
- A lower-priced way to reduce starting current on motors that always run at full speed.
- Adjustable start voltage and soft-start time via a potentiometer.
- A straightforward soft-start option for motors from 1KW to 8KW.
Product Notes

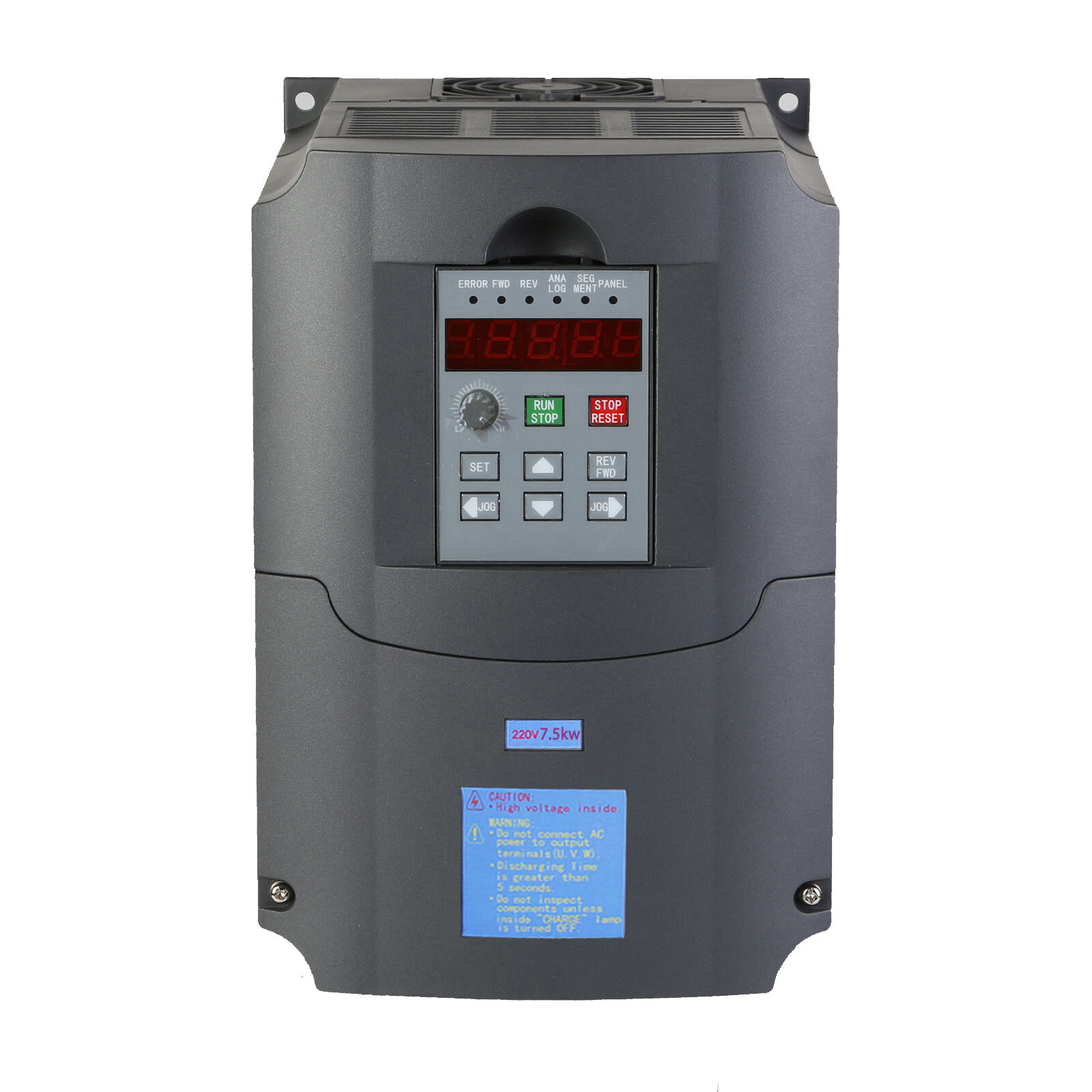

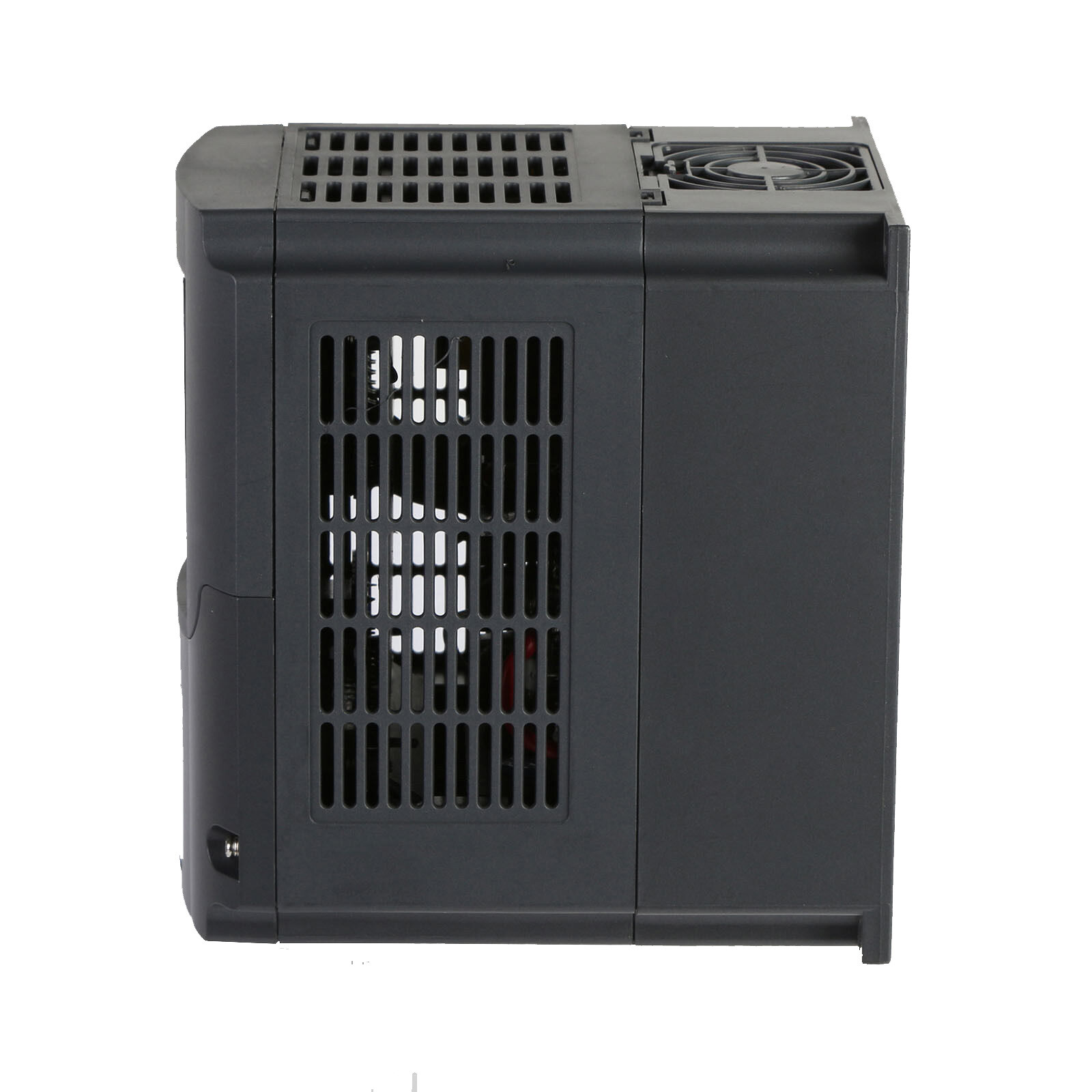

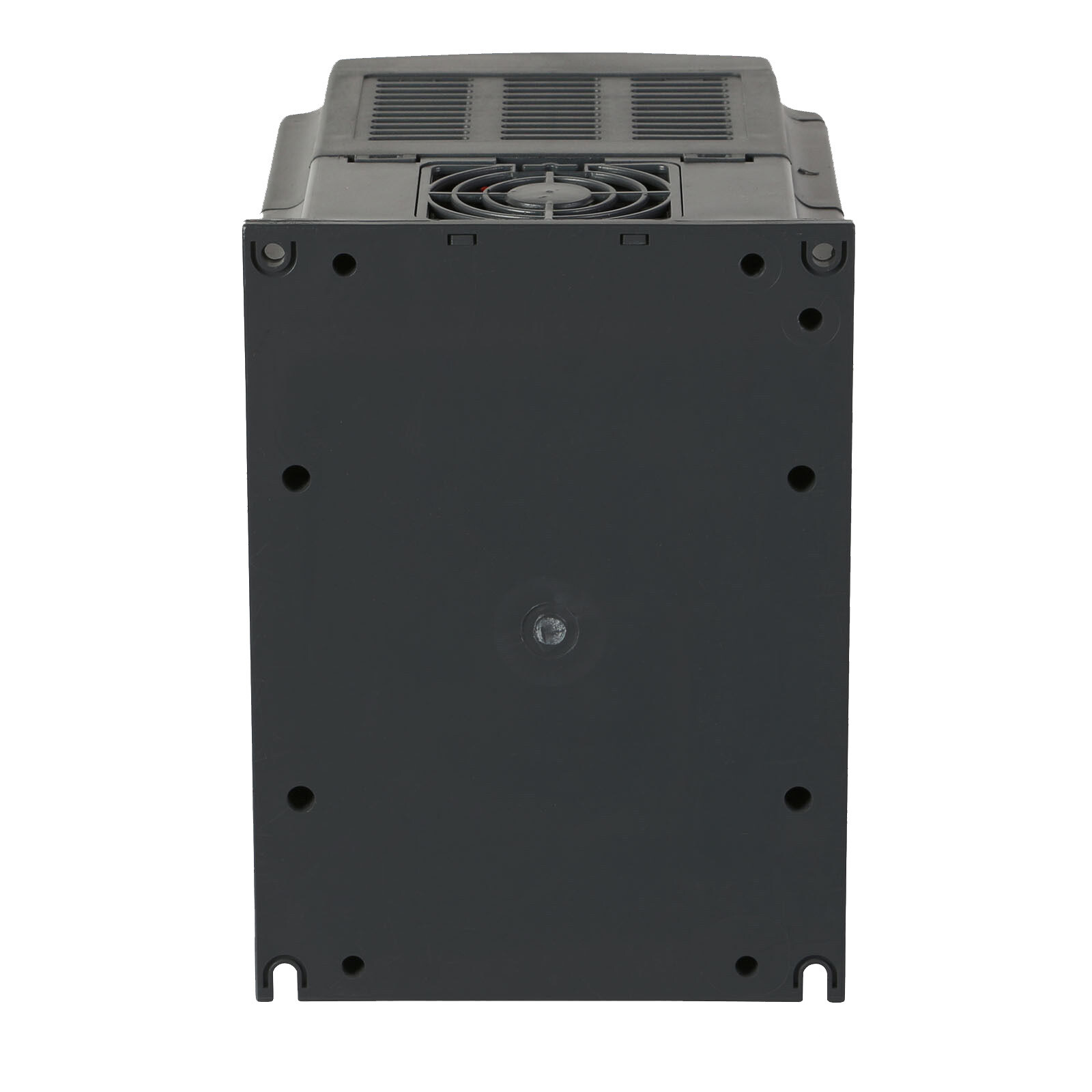

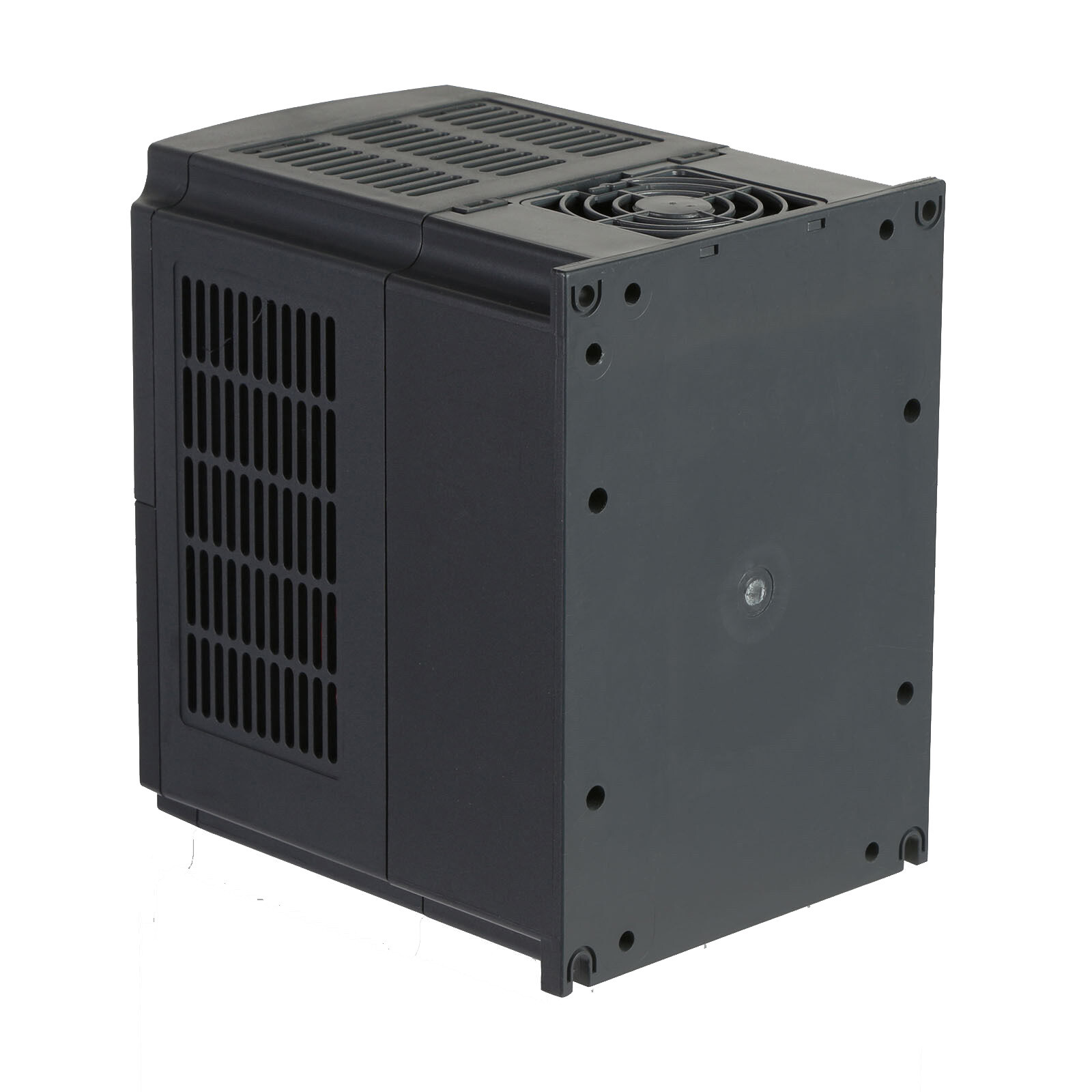

7.5KW 10HP 220V Variable Frequency Drive Inverter
This drive is the pick if your application demands speed control. It's rated at 7.5KW (10HP) and uses SPWM control, producing a variable frequency output rather than a fixed feed. That makes it suitable for three-phase motors running from a 220V input, and it's suited for CNC, compressor, grinder, and spindle work. At USD 158.90, it's the higher-priced option here, but it's doing a more complex job. The limitation is that it may be overkill for a simple fixed-speed motor, and the 7.5KW capacity means you should confirm your motor's load actually needs that size before buying.
1/2/4/6/8KW Motor Soft Starter
This starter handles the task of smoothing out the moment a motor switches on. It's priced at USD 48.59 and works with supplies from 110V to 380V. The potentiometer lets you set the starting voltage and the soft-start time, from a quick ramp up to a 30-second gradual climb. That gives you control over the initial surge without changing the running speed. The 1/2/4/6/8KW sizing lets you match it to different motor sizes. Its limitation is that it only manages the starting phase-once the motor reaches full speed, there's no frequency adjustment. If you need variable speed during operation, this isn't the tool.
Final Choice by Use Case
Pick the 7.5KW VFD when you have a three-phase motor on 220V power and need speed control, or when you're driving constant-torque equipment like a CNC spindle, grinder, or compressor. Choose the 1/2/4/6/8KW soft starter when your motor runs at a fixed speed and you simply want a smoother, more controlled startup for about $110 less.
