Choosing a replacement contactor for an air conditioner, heat pump, or refrigeration system usually comes down to three numbers: poles, coil voltage, and amp rating. Get them wrong and the part either won't be energized by your control circuit or won't carry the motor current. The four contactors here cover common residential and light-commercial configurations: a 1-pole 40A 24V model, a 2-pole 30A 120V model, a 3-pole 40A 24V model, and a 2-pole 40A 24V definite-purpose model. Listed prices span from $13.92 to $36.40, so matching the specification takes priority over choosing the cheapest part.
Quick take
If you need a 2-pole 40A contactor on a 24V control circuit, the Shopcorp definite-purpose contactor gives you a UL listing and a 50A resistive rating. A 120V control circuit points to the HIATSU 2-pole 30A unit. Three-phase switching needs the 3-pole 40A model, and a simple 1-pole 24V replacement can use the HVAC Motor Contactor.
Listed-price comparison
| Product | Listed price | Price bar |
|---|---|---|
| HVAC Motor Contactor 1 Pole 40A 24VAC Coil | USD 17.99 | |
| HIATSU Motor Contactor 2-Pole 30A 120V | USD 13.92 | |
| 3 Pole 40 Amp 24 VAC Coil AC Contactor | USD 36.40 | |
| AC Contactor 40 Amp 50 RES 2 Pole 24VAC Coil | USD 22.99 |
Decision matrix
- Need one switched pole on a 24V circuit? The HVAC Motor Contactor 1 Pole 40A is the only 1-pole unit in this group.
- Need a 2-pole contactor but your coil is 120V? The HIATSU Motor Contactor 2-Pole 30A 120V matches that control voltage.
- Need a 2-pole contactor with a 24V coil and a 40A inductive rating? The AC Contactor 40 Amp 50 RES 2 Pole 24VAC Coil fits.
- Need three switched poles at 40A on 24V? The 3 Pole 40 Amp 24 VAC Coil AC Contactor is the only 3-pole option here.

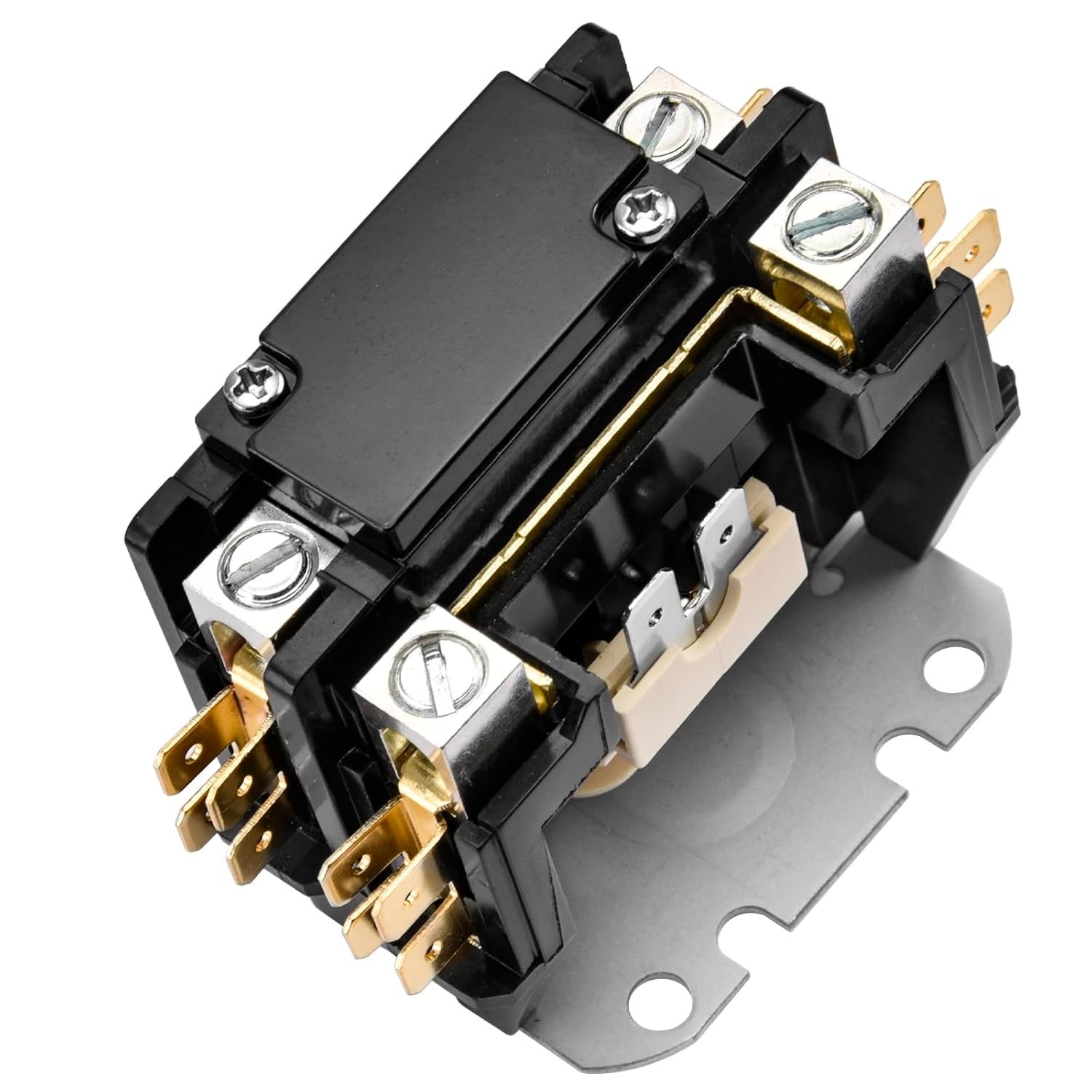

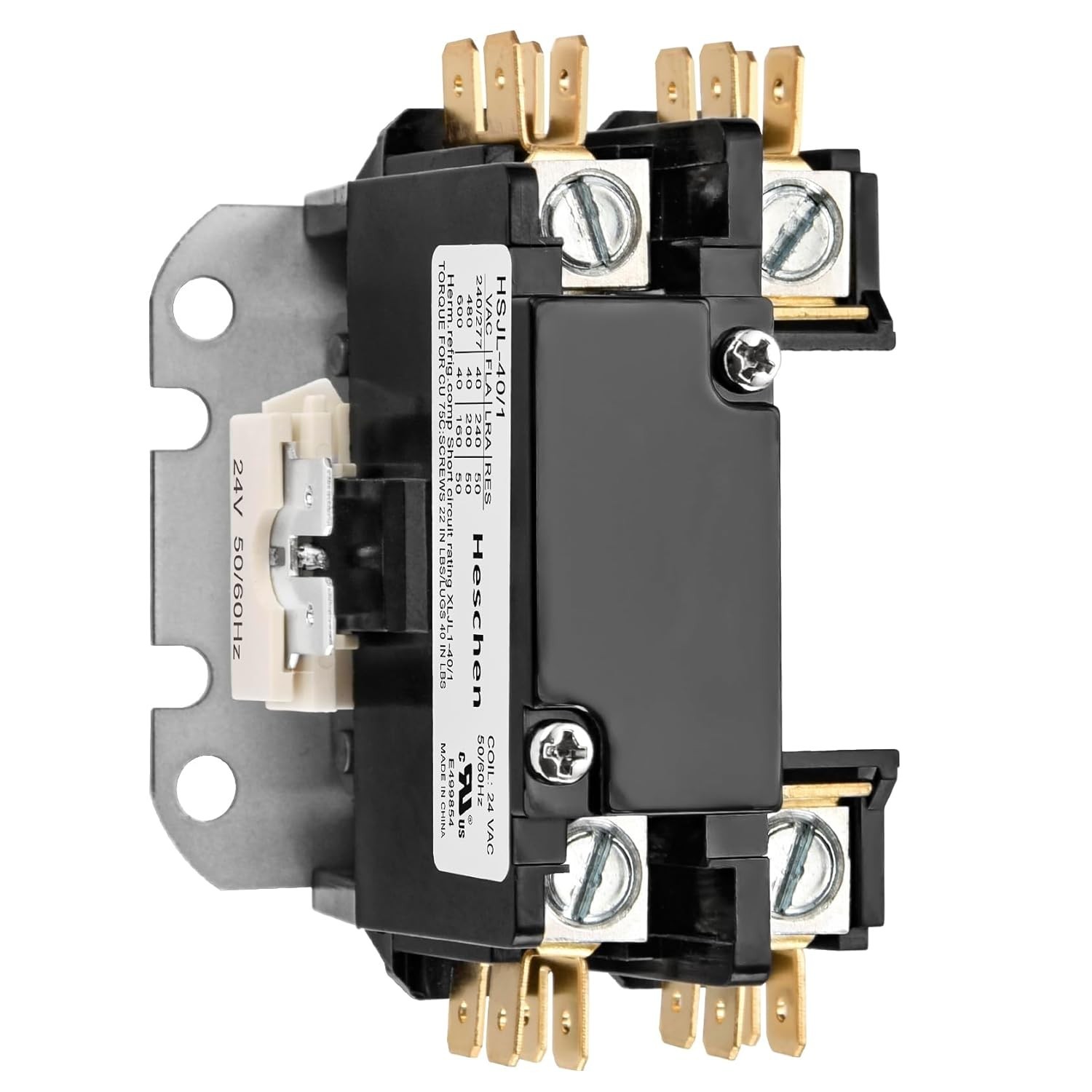

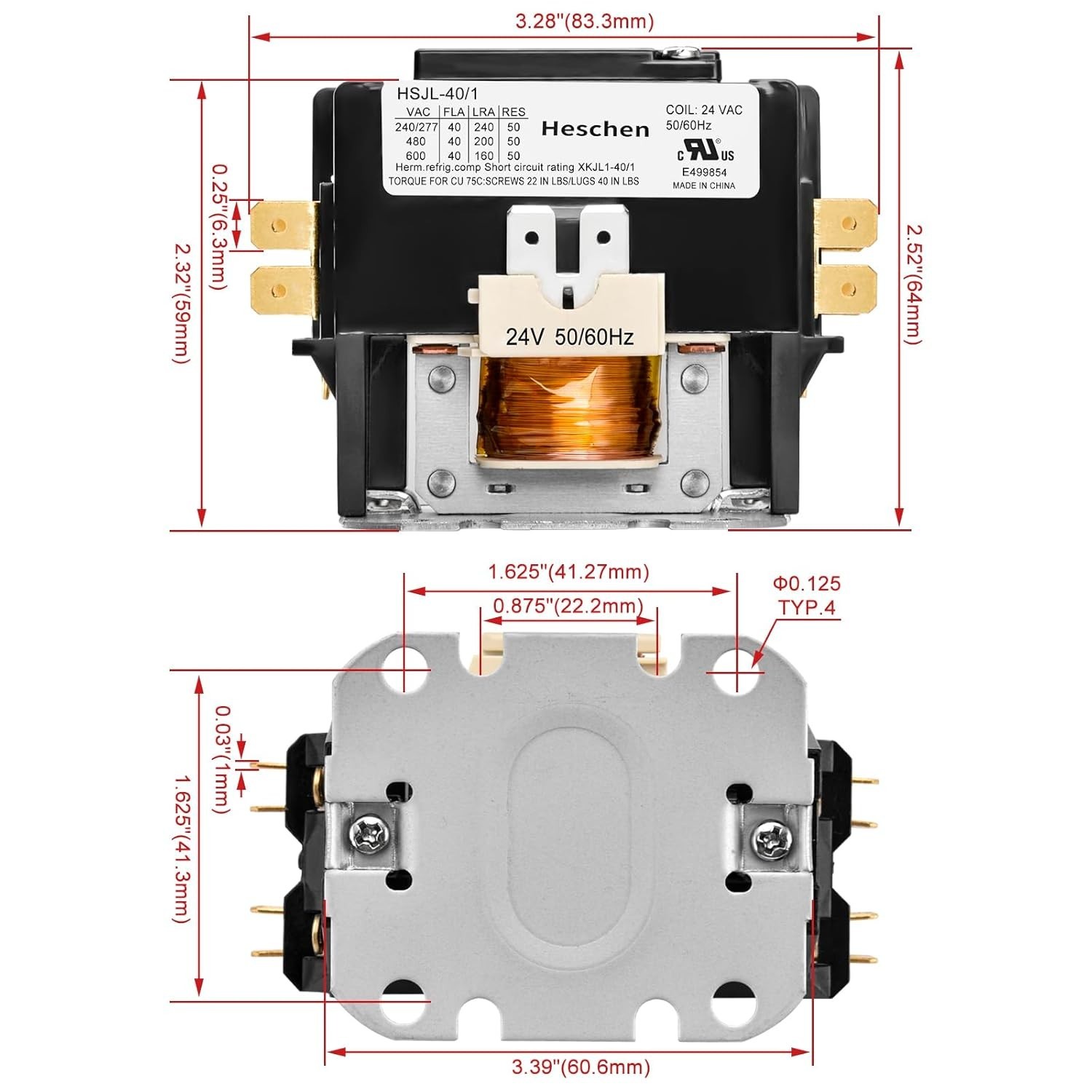

HVAC Motor Contactor 1 Pole 40A 24VAC Coil
This is the simplest path to a 24V coil: one pole, 40A full-load amperage, and 50A resistive load. The listing calls out copper material and a UL listing, which are useful when you need a basic replacement for single-phase HVAC equipment. It is also the only 1-pole contactor in the lineup, so it is easy to wire if your system only needs one switched leg. The limitation is that one pole cannot handle two- or three-pole switching. If your unit uses a 2-pole or 3-pole contactor, move to the corresponding model. At just under one-quarter kilogram, this is a lightweight part, but weight alone should not drive the decision.
HIATSU Motor Contactor 2-Pole 30A 120V
When the existing coil is 120VAC rather than 24V, this Hiatsu contactor is the one that matches. It is a 2-pole unit rated at 30A FLA, and the description highlights class B insulation, an encapsulated coil, quick-connect terminals, and compatibility with major HVAC brands. The package includes one contactor. The limitation is the current rating: 30A is lower than the 40A models in this group, so this part should be paired with a load within that rating. If your system needs more ampacity or a 24V coil, one of the 40A models is a better fit. At the low end of the price spread, it is also the least expensive way to get a 120V coil in this set.

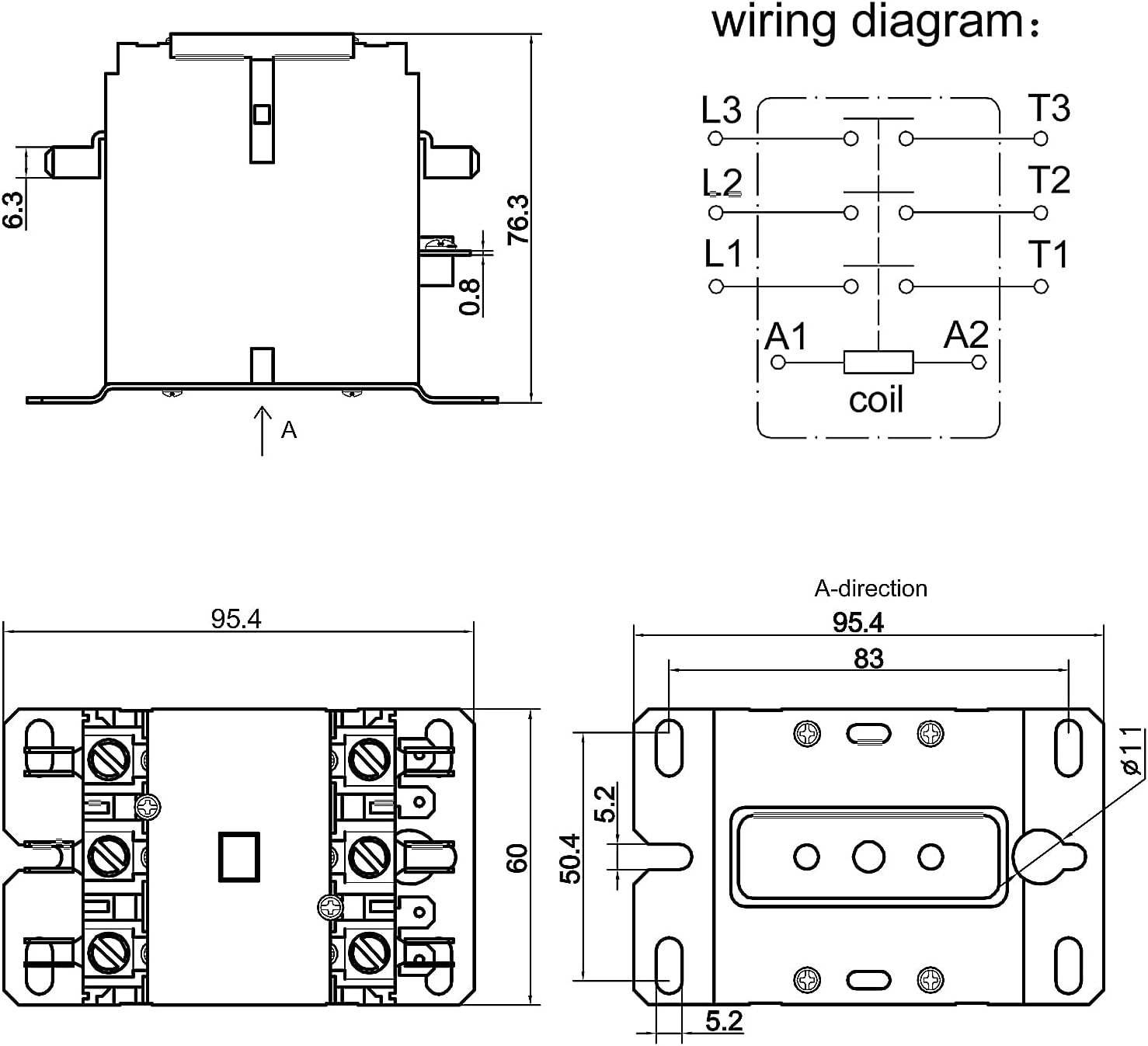

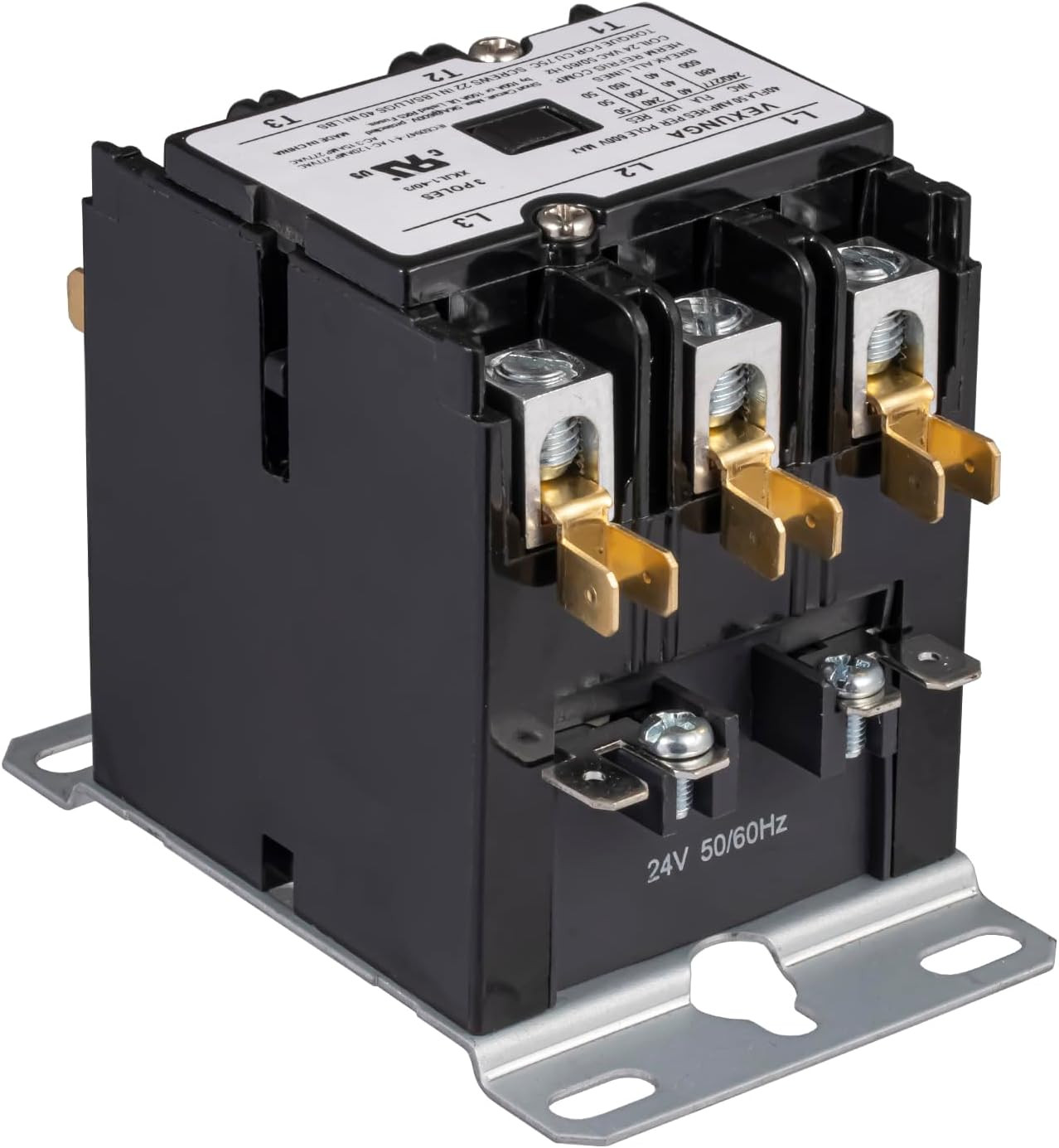

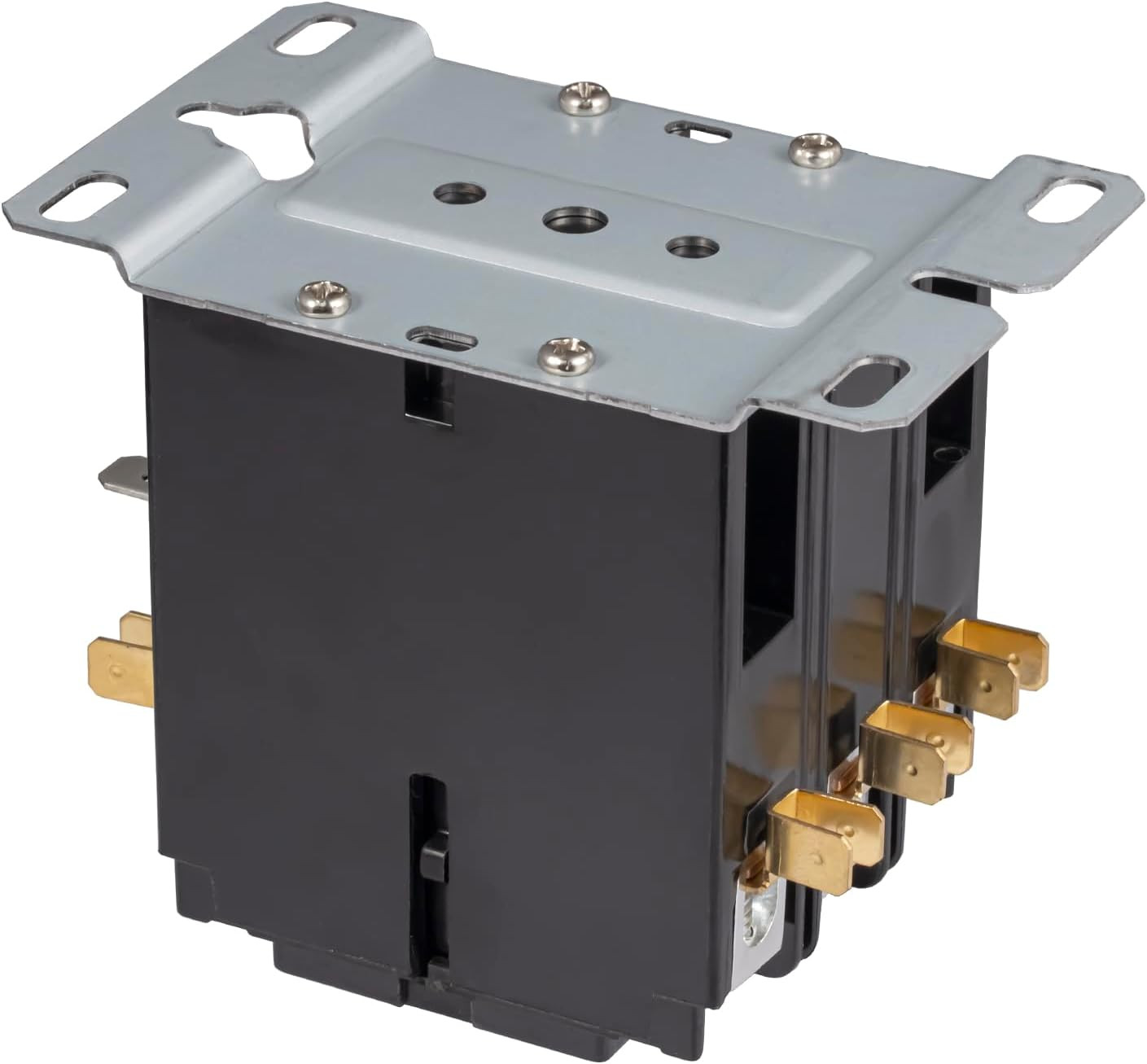

3 Pole 40 Amp 24 VAC Coil AC Contactor
This is the only 3-pole contactor in the group, and its description emphasizes copper terminal contacts, a pure copper coil, a flame-retardant shell, and direct replacement without wiring changes. Temperature range is listed from -40°C to +65°C, which covers extreme operating environments for an AC contactor. The 3-pole layout is the main reason to choose it: it can switch three separate load circuits together. The trade-off is size and price. It is the heaviest unit here at 15.5 ounces and the highest-priced option in this comparison. If your equipment does not actually need three poles, a 2-pole model will be a simpler match.

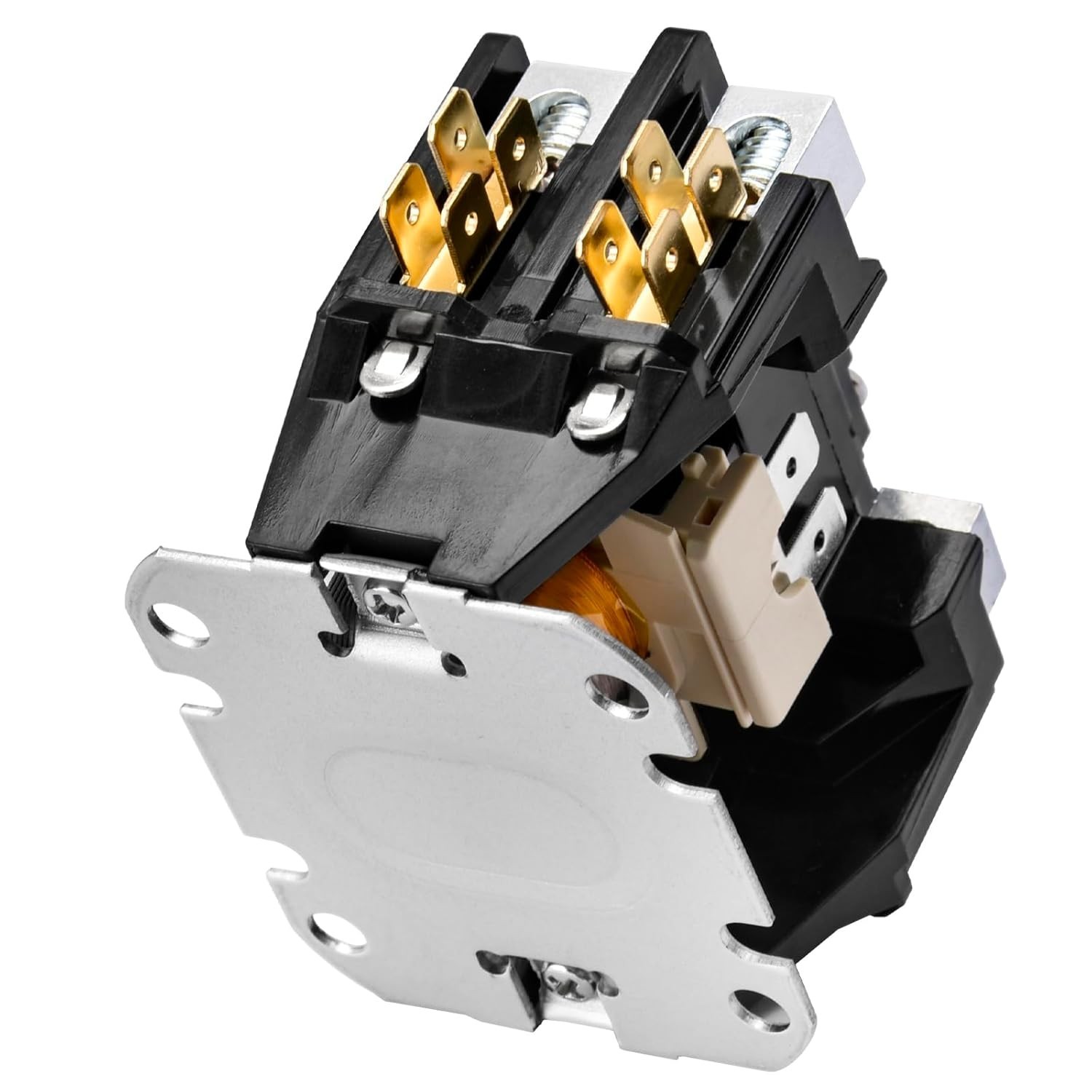

AC Contactor 40 Amp 50 RES 2 Pole 24VAC Coil - Definite Purpose UL Listed
This Shopcorp contactor brings the 2-pole specifications together: 40A inductive/motor load, 50A resistive/incandescent load, 24VAC coil, panel mount style, and UL listing. The description positions it for HVAC, lighting, refrigeration, and heat-pump work, and its country of origin is listed as the United States. The limitation is the pole count: two poles, not three. If your application needs three-pole switching, you will need to step up to the 3-pole model. For a 2-pole 24V setup, this is the model that checks the ampacity and resistive load boxes.
Final recommendation by use case
- Single-phase compressor or heat pump with a 24V coil and a 40A motor load: HVAC Motor Contactor 1 Pole 40A 24VAC Coil.
- Existing 120V control circuit with a 30A load: HIATSU Motor Contactor 2-Pole 30A 120V.
- Three-phase or three-circuit switching at 40A with a 24V coil: 3 Pole 40 Amp 24 VAC Coil AC Contactor.
- 2-pole 40A 24V replacement with a UL listing and 50A resistive capacity: AC Contactor 40 Amp 50 RES 2 Pole 24VAC Coil - Definite Purpose UL Listed.
