Every automated line eventually needs to answer the same question: should the edge-control function live in a complete dedicated system, a set of used modules, or a single replacement board? That is the real tension behind industrial PCs, SCADA, and edge control. Spend too little and you may be missing the servo, sensor, or cabinet hardware the job requires; spend too much and you might pay for a system with more thrust and stroke than your webs need.
The four options here cover a wide price spread. The lowest is a used industrial control board with a gold edge connector; the highest is a new high-speed servo edge position system with 1-ton thrust and 150mm stroke. In between are a used Wagner photoelectric edge guide system and a new open-box Apex PCB replacement. The choice is less about one being best and more about how much of the motion-control job you want handled for you.
Quick take
- Wagner Photoelectric Edge Guide System C1240 & C1243 Modules in Control Cabinet ($489.00): a used, complete module set in a control cabinet, built around Wagner photoelectric sensing. Best when you want a modular edge-guide foundation and are comfortable with used equipment.
- EPC-A12 High-Speed Servo Edge Position Control System ($779.26): a new servo edge position system with 1-ton thrust and 150mm stroke. Best for heavy rolls or materials that need continuous automatic correction.
- Apex Industrial Tech 31-04115-08 Edge Variants PCB Control Board ($199.99): a new open-box replacement PCB for Edge Variants systems. Best for board-level repairs where the rest of the machine stays in place.
- ST4504-2 Industrial Control Board ($99.99): a used CE-marked board with gold edge connector and model WPC-179. Best as an entry-price spare for legacy OEM controls.
Listed prices at a glance
| Product | Listed price | Price bar |
|---|---|---|
| Wagner Photoelectric Edge Guide System C1240 & C1243 Modules in Control Cabinet | $489.00 | |
| EPC-A12 High-Speed Servo Edge Position Control System 1-Ton Thrust 150mm Stroke | $779.26 | |
| Apex Industrial Tech 31-04115-08 Edge Variants PCB Control Board 30-04376-02 | $199.99 | |
| ST4504-2 Industrial Control Board - CE Marked - Gold Edge Connector | $99.99 |
Decision matrix
- If the project is a full web-guiding or edge-positioning line, the EPC-A12 gives the most complete package.
- If you are building or rebuilding a cabinet with photoelectric edge guide modules, the Wagner C1240 & C1243 system is the modular route.
- If you only need to swap a board inside an existing Edge Variants control, the Apex PCB is the targeted replacement.
- If you need a spare board for a legacy OEM control cabinet and can accept used condition, the ST4504-2 is the entry price.
Product notes

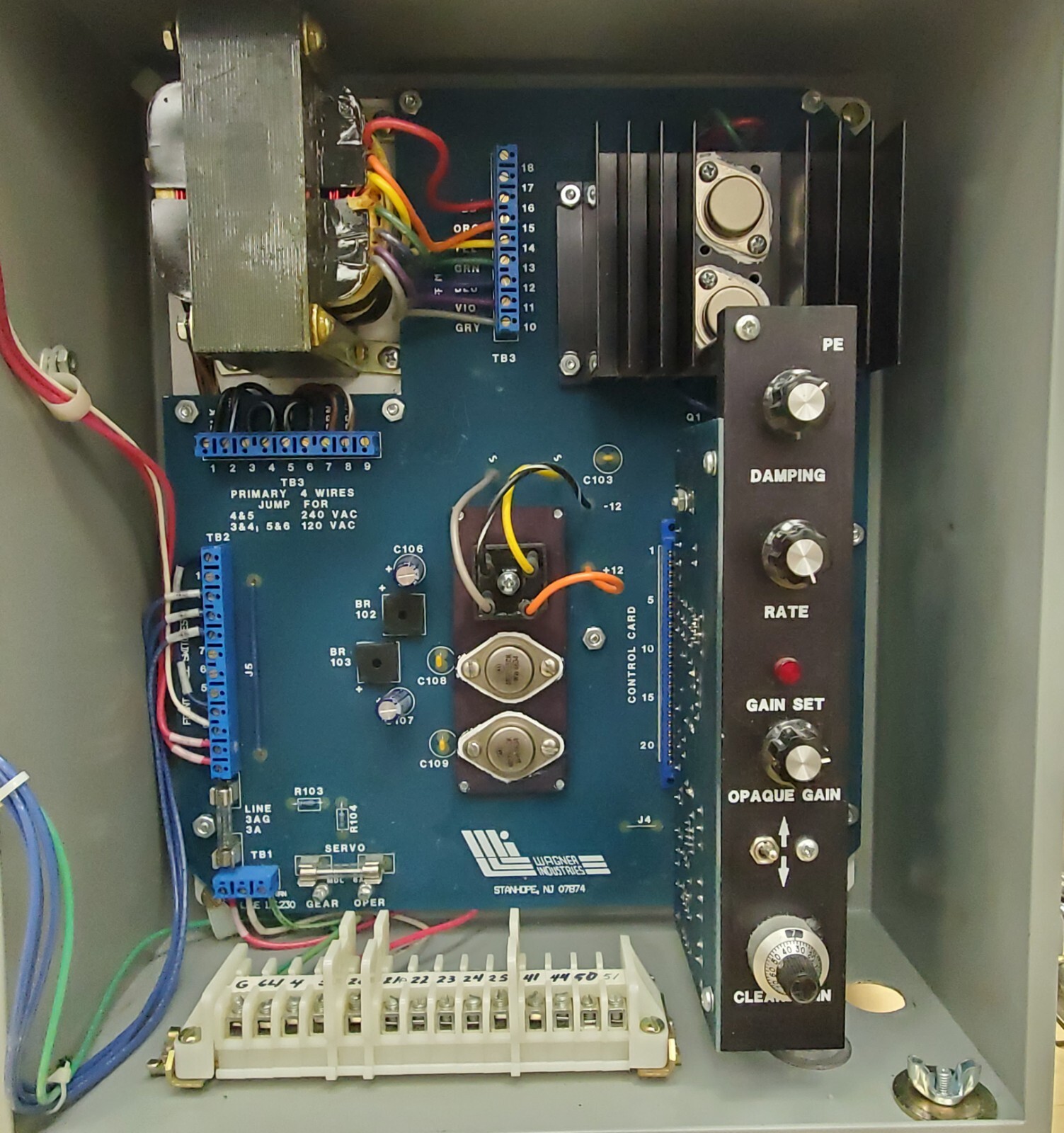

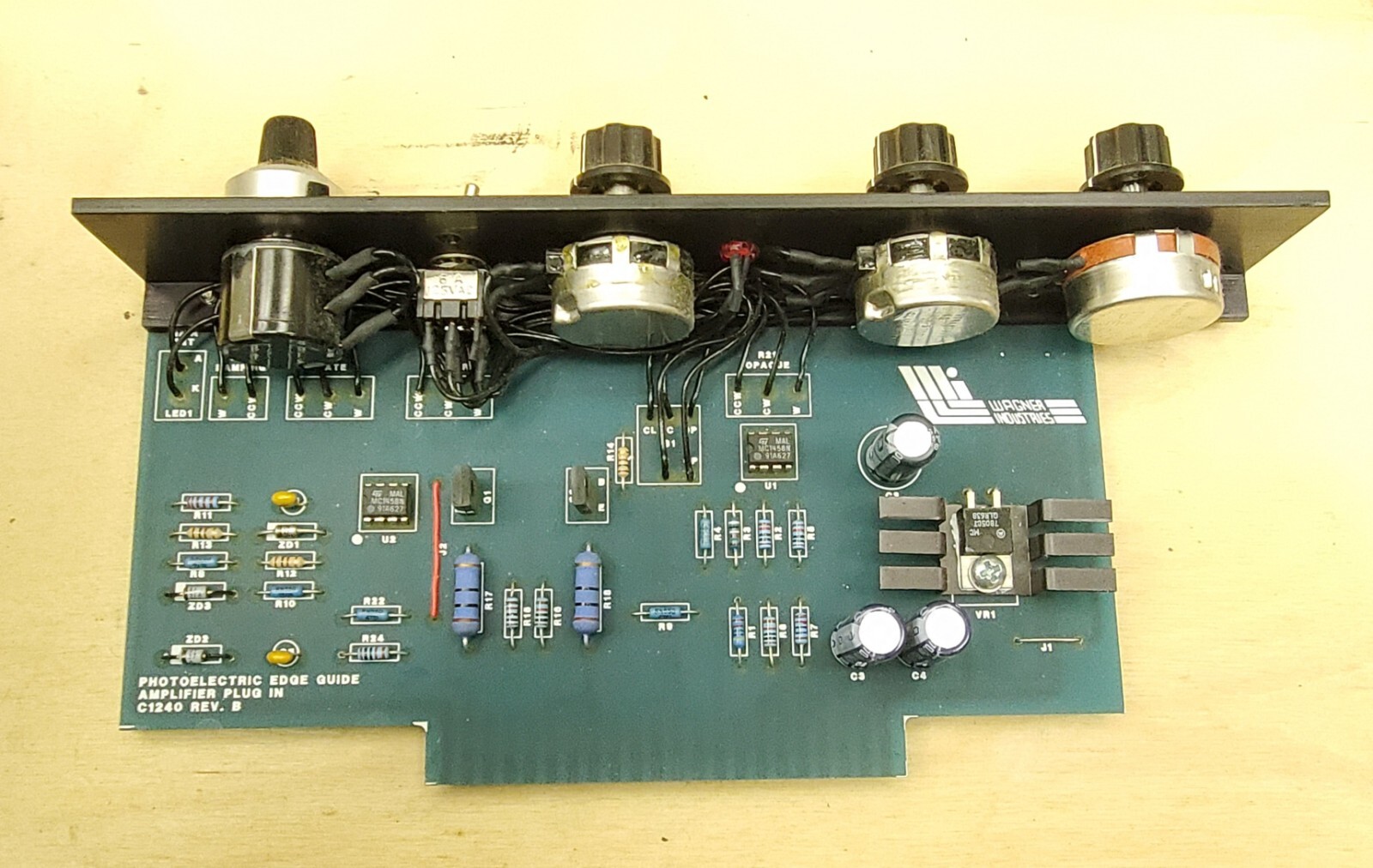

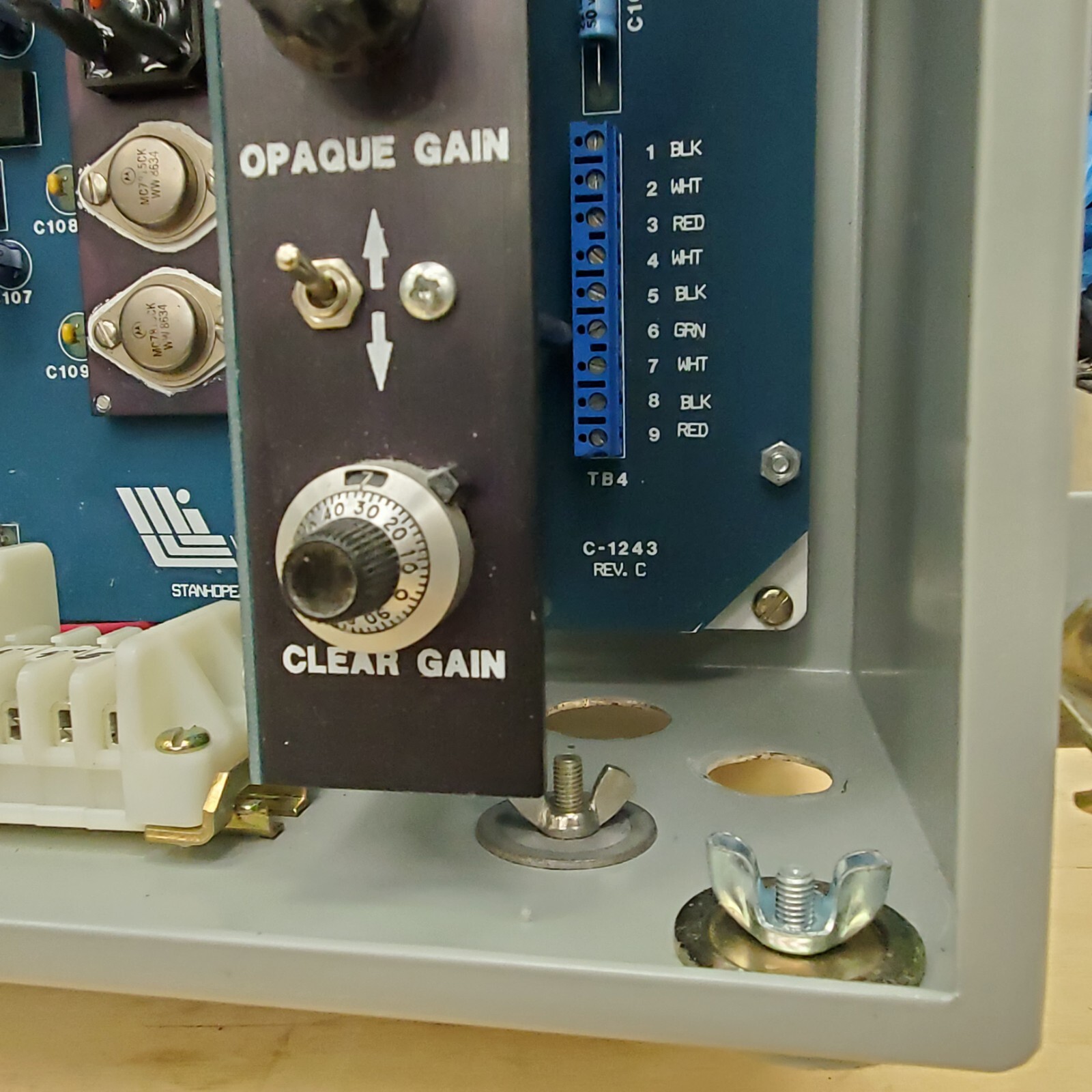

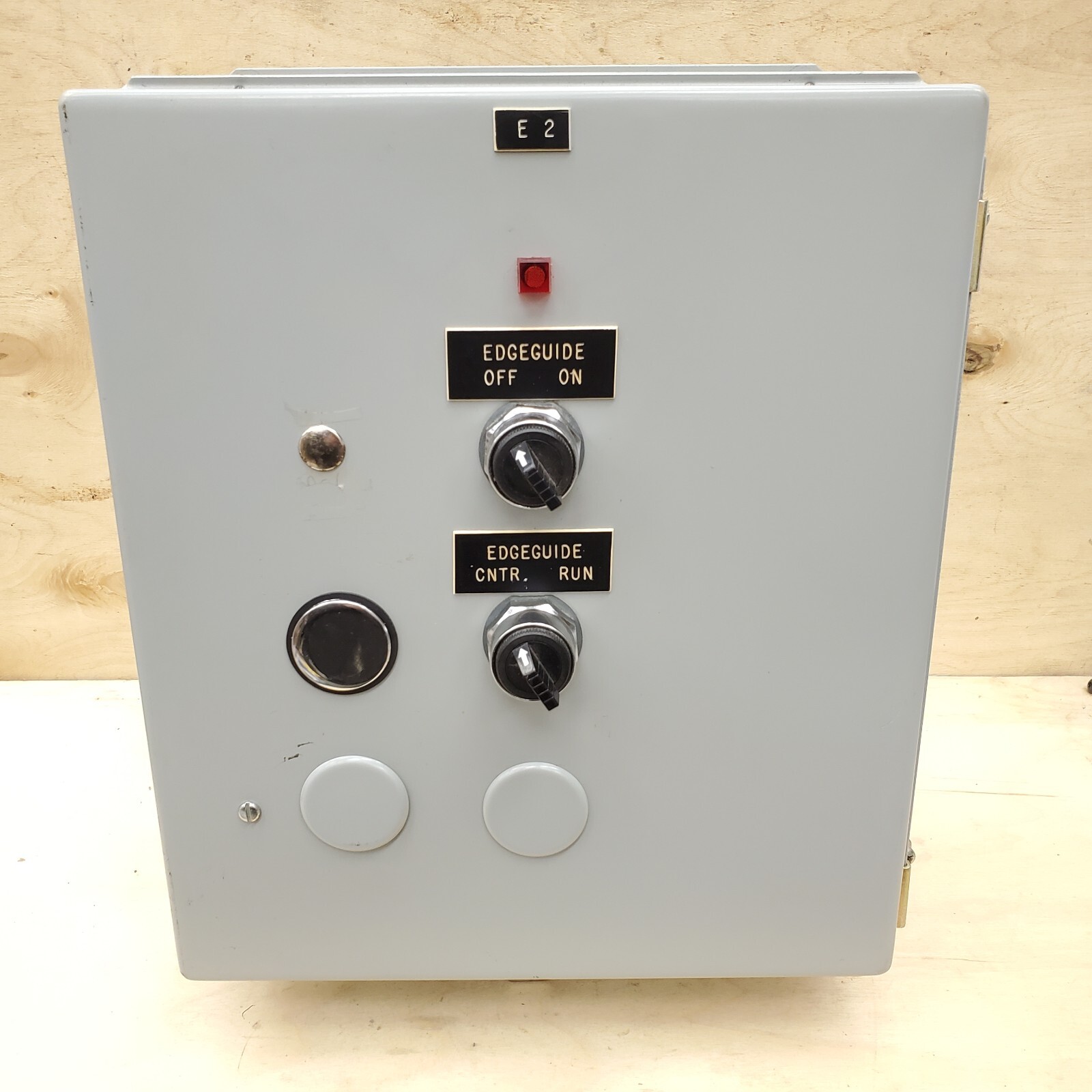

Wagner Photoelectric Edge Guide System C1240 & C1243 Modules in Control Cabinet
Start here when you want a used modular foundation rather than a single board. This unit combines C1240 and C1243 modules in a control cabinet, using Wagner photoelectric sensing for edge guide duty. It came out of a retired process line, and the system is sold as-is with no test performed. That is the trade-off: you get a complete module set, but you take on the risk of validating it before it goes into production. If your application is a photoelectric edge guide and you already have the surrounding cabinet work planned, this gives you a head start over building from bare PCBs.
EPC-A12 High-Speed Servo Edge Position Control System 1-Ton Thrust 150mm Stroke
If you want a single new system to handle the entire correction job, this TECHTONGDA unit is the most complete option in the group. The product title points to a high-speed servo edge position control system with 1-ton thrust and a 150mm stroke, and it uses ultrasonic sensing for continuous automatic correction of opaque materials. For heavy webs and demanding environments, that thrust capacity is the distinguishing feature. The limitation is the price: it is the highest listed price in the group, so choose it only when the load and stroke requirements justify the investment. Being new also removes used-equipment uncertainty.
Apex Industrial Tech 31-04115-08 Edge Variants PCB Control Board 30-04376-02
This is a board-level part, not a complete edge-control system. The product is labeled with model 31-04115-08 and reference number 30-04376-02, and it is a new open-box PCB. If your machine already has the rest of the control package in place, this targeted replacement is a sensible way to restore an Edge Variants system without replacing the whole assembly. The trade-off is scope: this is a PCB, so treat it as a repair part for an existing system rather than a new machine build. It sits in the middle of the price range, but the main reason to choose it is the fit to an existing Edge Variants setup.
ST4504-2 Industrial Control Board - CE Marked - Gold Edge Connector
The entry point of the group is this used ST4504-2 board, labeled with the model WPC-179. It carries a CE marking and a gold-finger edge connector, with several integrated circuits and green jumper wires that point to field modification or repair. That combination makes it a candidate spare for a legacy OEM control cabinet, but it also sets the expectation of used condition. If the rest of the machine is already working and you only need a control board, this is the most direct way to get a part at the lowest end of the price range without stepping up to a full system.
Final recommendation by use case
For a new high-speed edge-positioning installation, build around the EPC-A12. For a used but modular photoelectric edge guide set, the Wagner C1240 & C1243 modules make sense. For a quick board swap in an existing Edge Variants control, the Apex PCB is the focused choice. And for the smallest outlay on a legacy spare, the ST4504-2 fills that role at the entry point of the range. Start with your existing hardware and expected load, then pick the level that matches.
