Putting together a router, engraving machine, or automated positioning rig means choosing the right servo stepper motion control parts. The four options here cover very different jobs: two stand-alone driver sets, a compact controller, and a complete kit with motors and a controller board. Prices range from $18.69 to $235, so the decision is more about scope than cost alone.
Quick take
If you need a standalone controller, the XY-SMH is a simple option. If you need to drive several motors, the TB6600 three-pack covers that with one purchase. The Zaplyte drivers suit smaller 39/42/57mm motors, and the RATTM MOTOR kit provides everything to equip a multi-axis machine-drivers, motors, and a USB controller.
Listed-price comparison
The table below puts the four options in order of listed price.
| Product | Listed Price | Price Bar |
|---|---|---|
| SMH 42 57 Stepper Motor Controller Forward/Reverse Pulse Delay Positioning Angle | USD 18.69 | |
| 2 x Stepper Motor Drivers 4A Controller CNC Digital for 39/42/57 Stepper Motor | USD 21.18 | |
| 3PCS TB6600 Stepper Motor Driver Upgraded 4A 9-42V 32 Microstep CNC Controller | USD 23.79 | |
| US〗4 Axis Nema23 stepper motor 425oz-in 3A&Driver &USB Mach3 CNC Controller Kit | USD 235.00 |
Decision matrix
Use this matrix to narrow down the choice by project type.
| Option | Best for | Consider if |
|---|---|---|
| XY-SMH controller | Pulse-delay positioning | You want a standalone controller with power-off memory |
| Zaplyte drivers | Small motor axes | You already have a motion controller or breakout board |
| TB6600 drivers | 3D printer or engraving builds | You want three separate driver channels in one bundle |
| RATTM MOTOR kit | New machine build from scratch | You want motors, drivers, and a motion board in one order |
Product notes

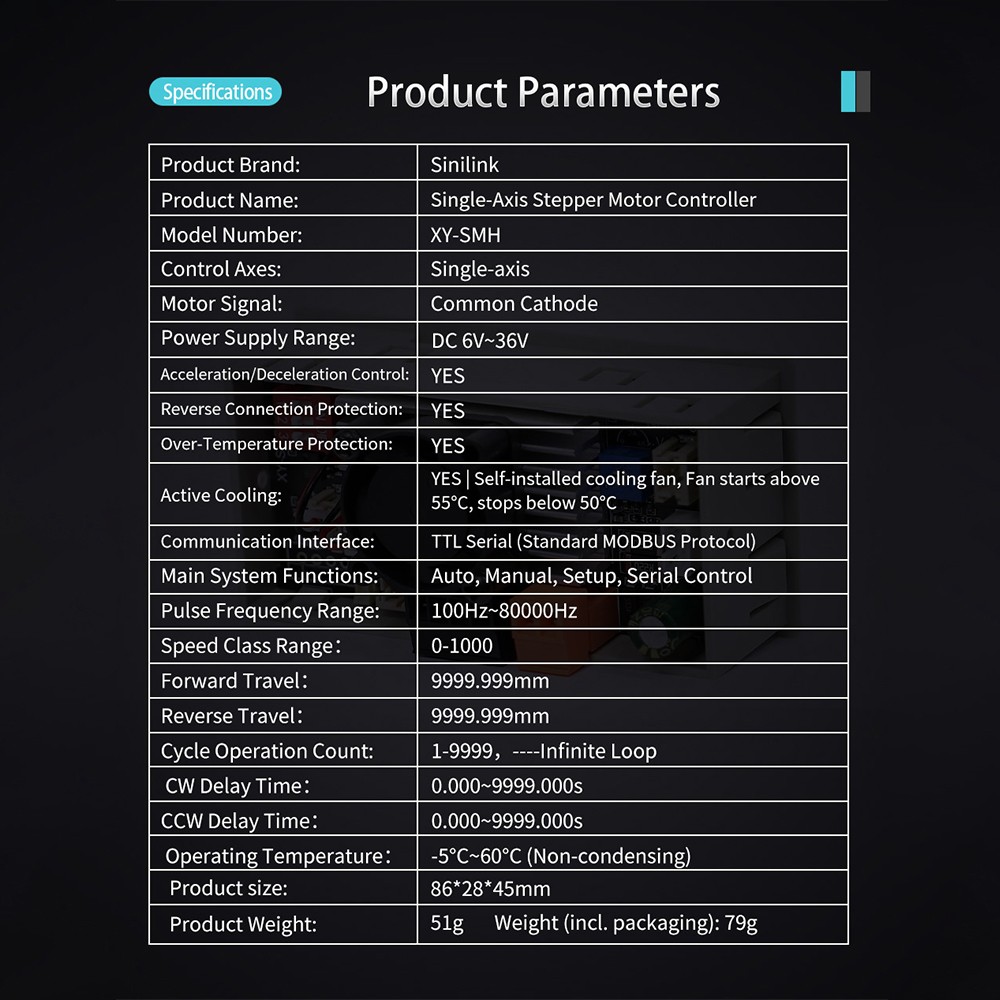

XY-SMH Stepper Motor Controller
The XY-SMH is a controller for forward/reverse, pulse delay, and positioning angle work on two-phase four-wire stepper motors. It runs from DC 6-36V, includes acceleration/deceleration control, and carries a power-off memory so settings stay put. It can work standalone or with external sensors/control systems, making it a fit for simple industrial control jobs.
Choose it when you need a controller that handles the motion logic as a standalone box rather than as a full driver card. The limitation is that it is a controller only-there is no high-current output stage, so you will still need a separate stepper driver between the controller and the motor.
Zaplyte 2-Pack Digital Stepper Drivers
This set includes two digital stepper drivers that accept 9-42VDC input and deliver 0.5-4.0A output. It suits 39, 42, and 57mm stepper motors, with selectable microstep settings up to 32 and a semi-flow mode that cuts output current at standstill to limit motor heating. The onboard protection covers overcurrent, overvoltage, and reverse voltage.
A strong reason to pick this set is the pair of drivers in one box for machines with mirrored axes. The tradeoff is that these are power drivers, not controllers, so you need a separate step/direction pulse source. Also, the installation note asks for 20mm of clearance around each driver and separation from hot equipment.

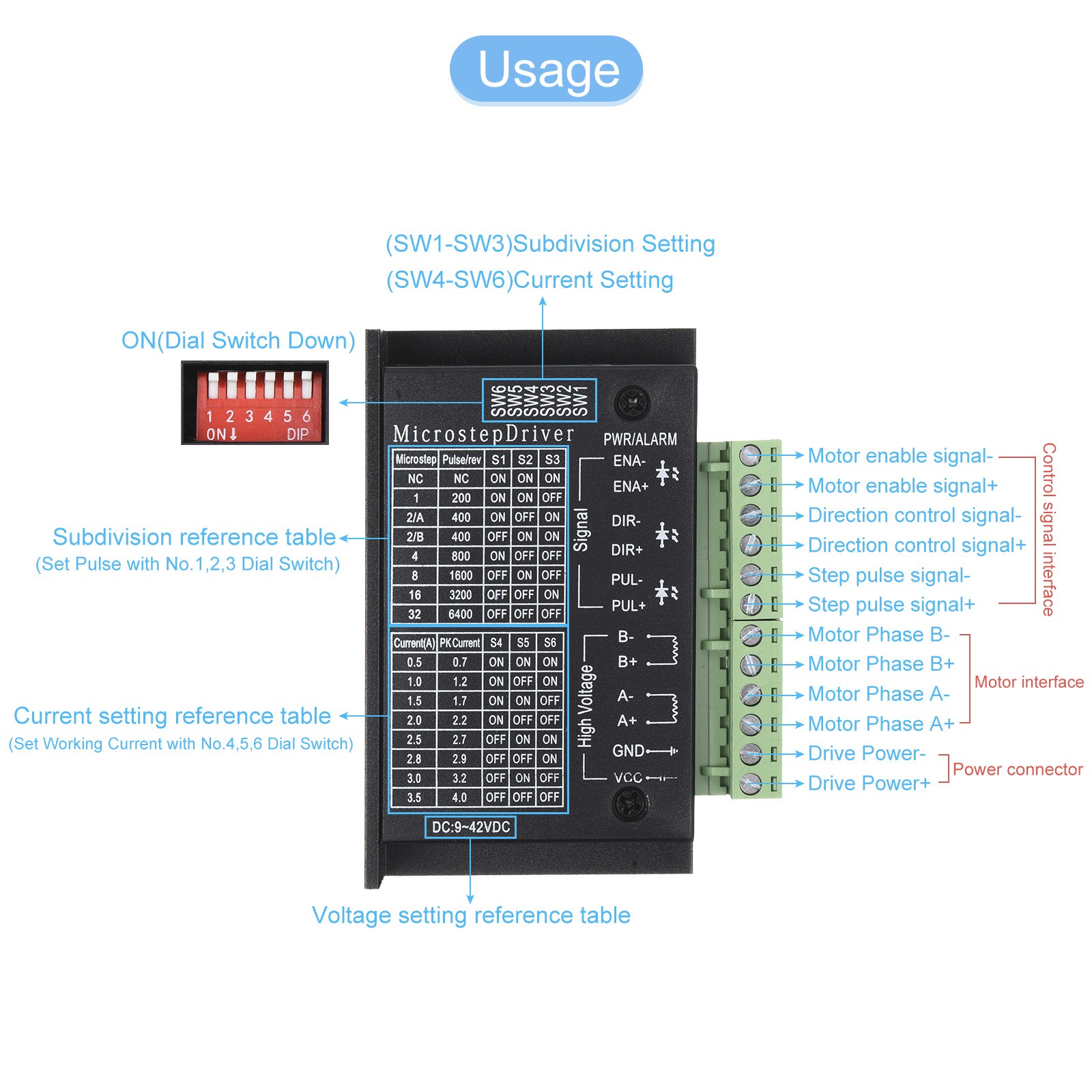

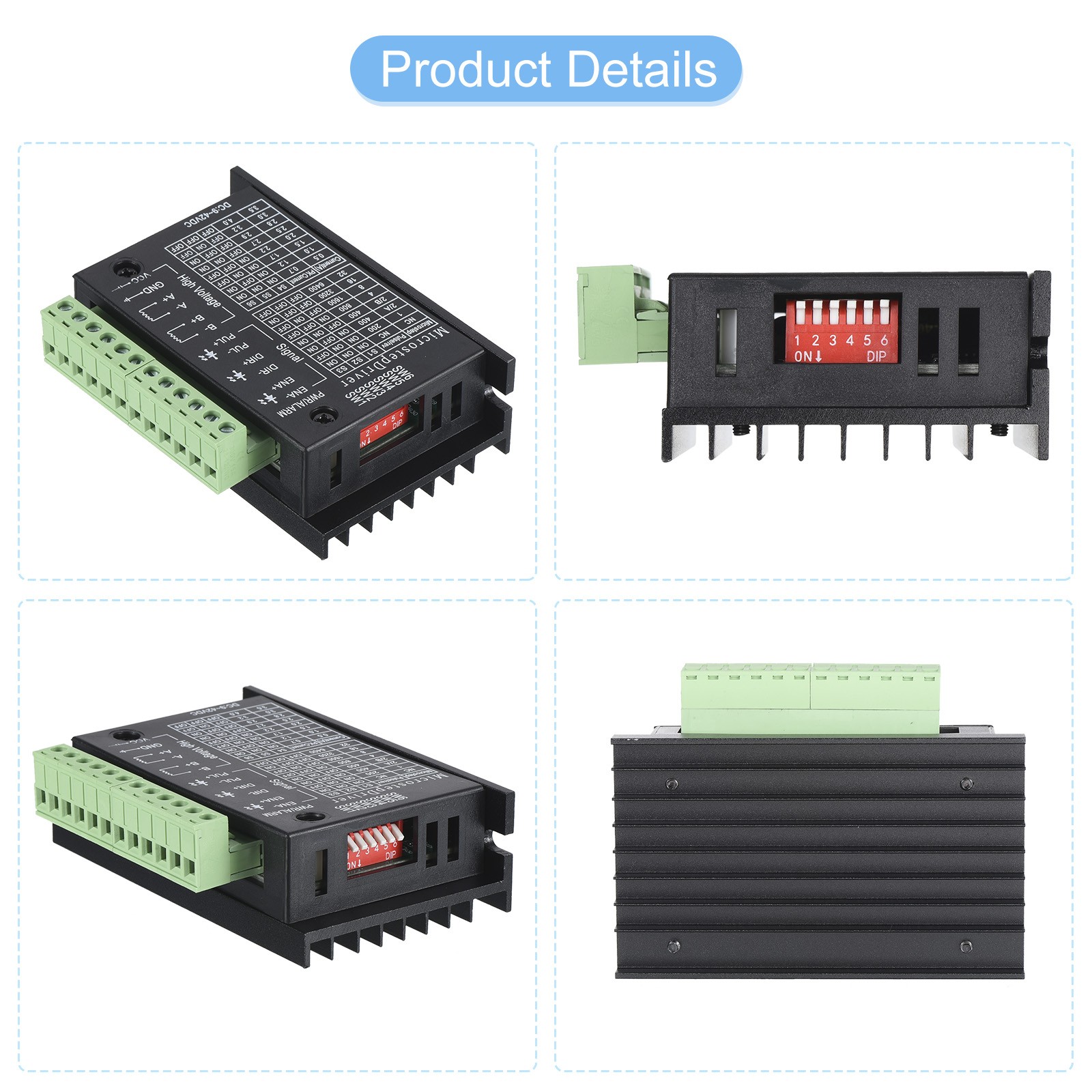

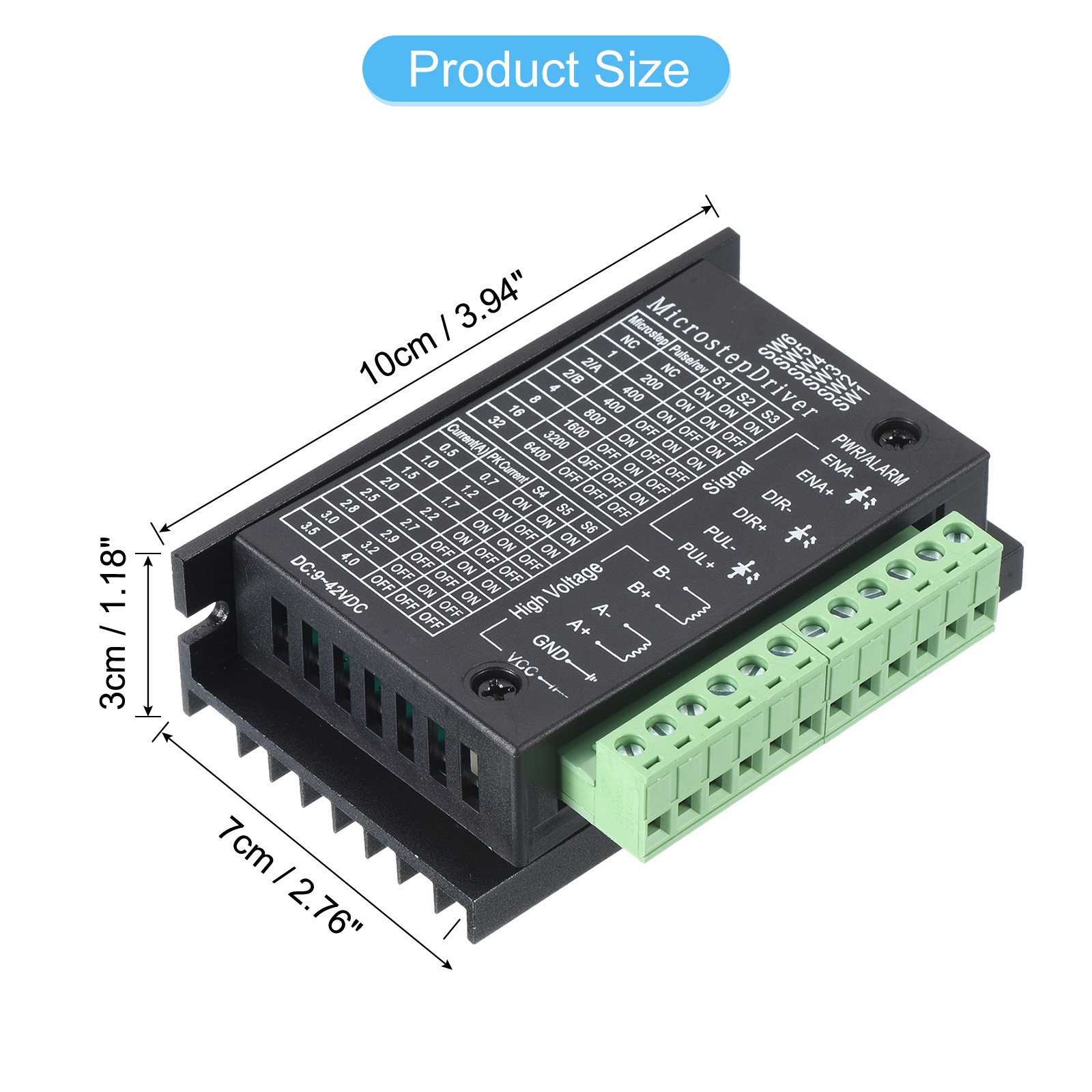

TB6600 3-Pack Stepper Motor Drivers
The TB6600 three-pack is a set of three drivers rated for 0.5-4.0A with a 9-42VDC input range. Each driver offers 1/2/4/8/16/32 microstep settings and opto-coupler isolated signal inputs for noise resistance. It can handle four, six, and eight lead two-phase stepper motors, which covers most NEMA 17 and NEMA 23 frames. Protection includes overheat, overcurrent, undervoltage, and reverse polarity.
The biggest advantage is the three-driver count for a multi-axis machine in a single purchase. The limitation is the operating temperature: -10 to 45°C, so it is not meant for hot unventilated enclosures. And as with the Zaplyte set, you still need a controller or breakout board to generate step/direction pulses.
RATTM MOTOR 4-Axis Nema23 Kit
The RATTM MOTOR kit is the complete package. It includes four Nema23 stepper motors with 425oz-in holding torque and 3A current, four DM556S drivers capable of 256 microstep resolution, a 400W 36V power supply, a 75W 24V supply, and a 4-axis USB Mach3 motion control board. The motors are hybrid dual-shaft types with a 1.8-degree step angle.
The reason to choose it is the completeness of the bundle-by the time you unpack it, you have nearly every powered component needed for a multi-axis router or engraving machine. The limitation is the build work: you will be wiring four motors, four drivers, two power supplies, and the breakout board, which assumes some electrical experience. It is also the most expensive way to go here.
Final recommendation
If your goal is a simple positioner, the XY-SMH controller is the simple option that can run by itself. For small-stepper machines where you already have a breakout board, the Zaplyte drivers give you two channels of stepper power. For NEMA 17 and NEMA 23 setups, the TB6600 drivers bring opto-isolated inputs and a full set of driver protections. And if you are starting from scratch and want a full router or engraving machine, the RATTM MOTOR kit takes care of component matching with motors, drivers, and power supplies. Match the option to the number of axes you plan to drive and whether you already own motors.
