Choosing the right servo stepper motion control module usually starts with a single question: do you need a smart controller to generate motion profiles, a signal board to feed an existing stepper driver, or a single board that combines controller and driver? These four listings answer that question at listed prices from $10.05 to $63.19. At one end, a compact pulse-generation board gives step and direction signals for a separate driver. At the other, an integrated controller/driver combines both roles and adds serial communication. In between are two controller modules aimed at different motor and voltage targets.
Quick take
These four boards divide into two practical groups: controller modules that generate motion profiles and a signal board that feeds an external driver. The one-box drive solution here is described as both controller and driver, while the Vikye board is the clearest signal-only option. The RATTM MOTOR module and XY-SMH controller both fit mid-price roles with different motor and voltage targets.
Listed price comparison
| Product | Listed price | Price bar |
|---|---|---|
| SMH 42 57 Stepper Motor Controller | USD 18.75 | |
| RATTM MOTOR Stepper Motor Driver Controller | USD 18.99 | |
| Stepper Motor Driver Controller Integrated Board | USD 63.19 | |
| Vikye Stepper Motor Controller Board | USD 10.05 |
Decision matrix
| Product | Best for | Watch out for |
|---|---|---|
| SMH 42 57 Stepper Motor Controller | Two-phase four-wire stepper projects with a DC 6-36V supply | Single-axis controller described by motion-profile features rather than an integrated drive stage |
| RATTM MOTOR Stepper Motor Driver Controller | NEMA 17 or NEMA 23 motors with ACC/DEC and adjustable forward delay | Input voltage range listed as DC5-30V; package contents are controller and cable |
| Integrated Controller/Driver Board | Builds that want controller and driver together on one board | Highest listed price and nine default workflow programs to review |
| Vikye Stepper Motor Controller Board | Adding pulse/direction signals to an existing stepper driver with common-anode or common-cathode wiring | Signal-generation only; separate stepper driver and motor do the moving |
Product notes
SMH 42 57 Stepper Motor Controller Forward/Reverse Pulse Delay Positioning Angle
Of the four listings, this XY-SMH controller is the one that calls out two-phase four-wire stepper motors and a DC 6-36V supply range. It stores motion settings after power-off, supports acceleration/deceleration control, and adds input reverse polarity protection plus over-temperature protection. Expandable control interfaces make it possible to connect external sensors or control systems. The single-axis, common-cathode description tells you to match the enable, pulse, and direction wiring to that layout. If you are shopping for a controller only, this fits that role; if you expected an integrated driver, this listing is not the one.
Stepper Motor Driver Controller Forward/Reverse Pulse/Speed/Angle Control Module
The RATTM MOTOR module is the listing that names NEMA 17 or NEMA 23 motors directly, so you can quickly compare it to your frame size. It includes ACC/DEC control, forward rotation delay from 0.0 to 999.9 seconds, reverse connection protection, and an English PDF manual. Input voltage is DC5-30V, which is worth checking against your bench supply. The package contents are listed as one controller and one cable, so the stepper driver and motor are separate parts of the build. Its narrower voltage range is the main spec to weigh against the XY-SMH controller.
Stepper Motor Driver Controller Integrated Board Forward/Reverse Pulse Speed
This is the only listing in the group described as an integrated step motor controller and driver. It offers four control modes, nine default workflow programs, button and potentiometer direction changes, and serial communication for NEMA 17 and 23 motors. The board also lists a 999.9 RPM speed and copper construction. Because the drive stage is already on the same board, you do not have to match a separate controller to a separate driver. The trade-off is the highest listed price in the comparison, and you still have nine built-in programs to review before choosing one for your motion sequence.
Stepper Motor Controller Board, Stepping Motor Drive Controller Speeds Regulatio

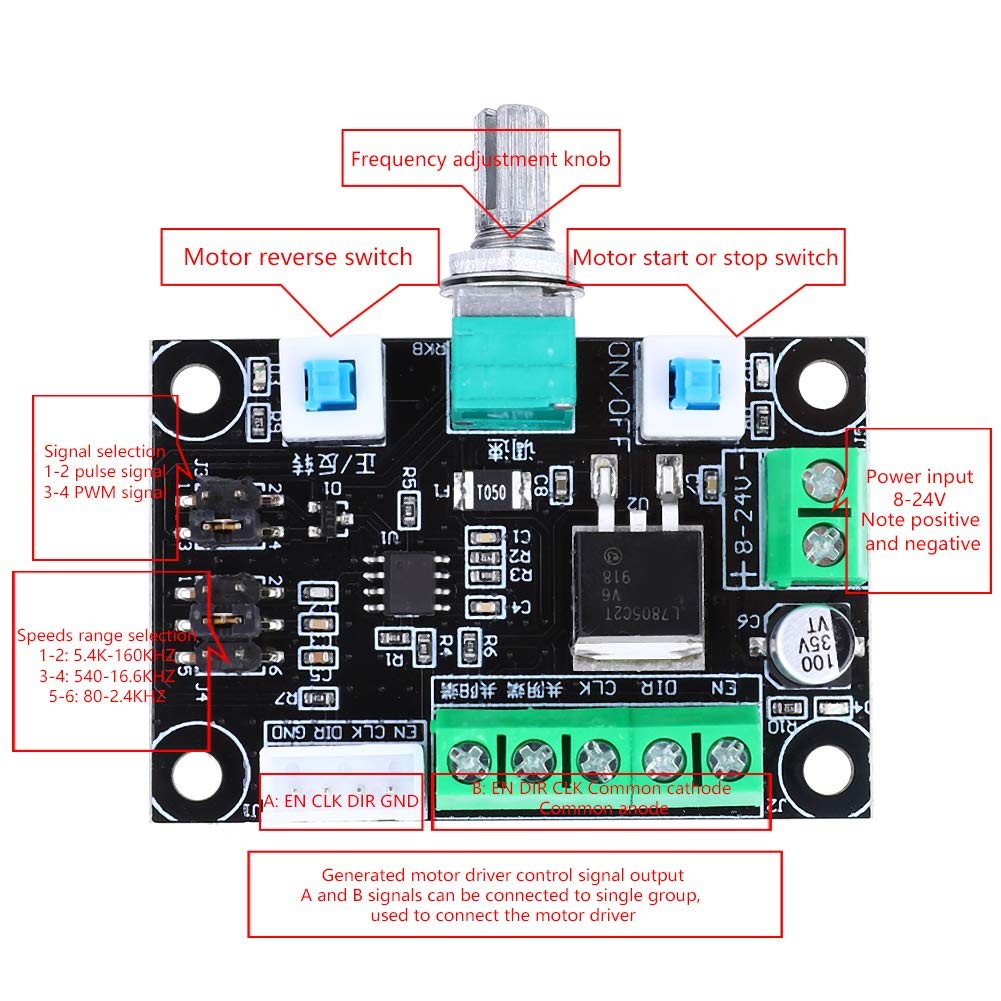

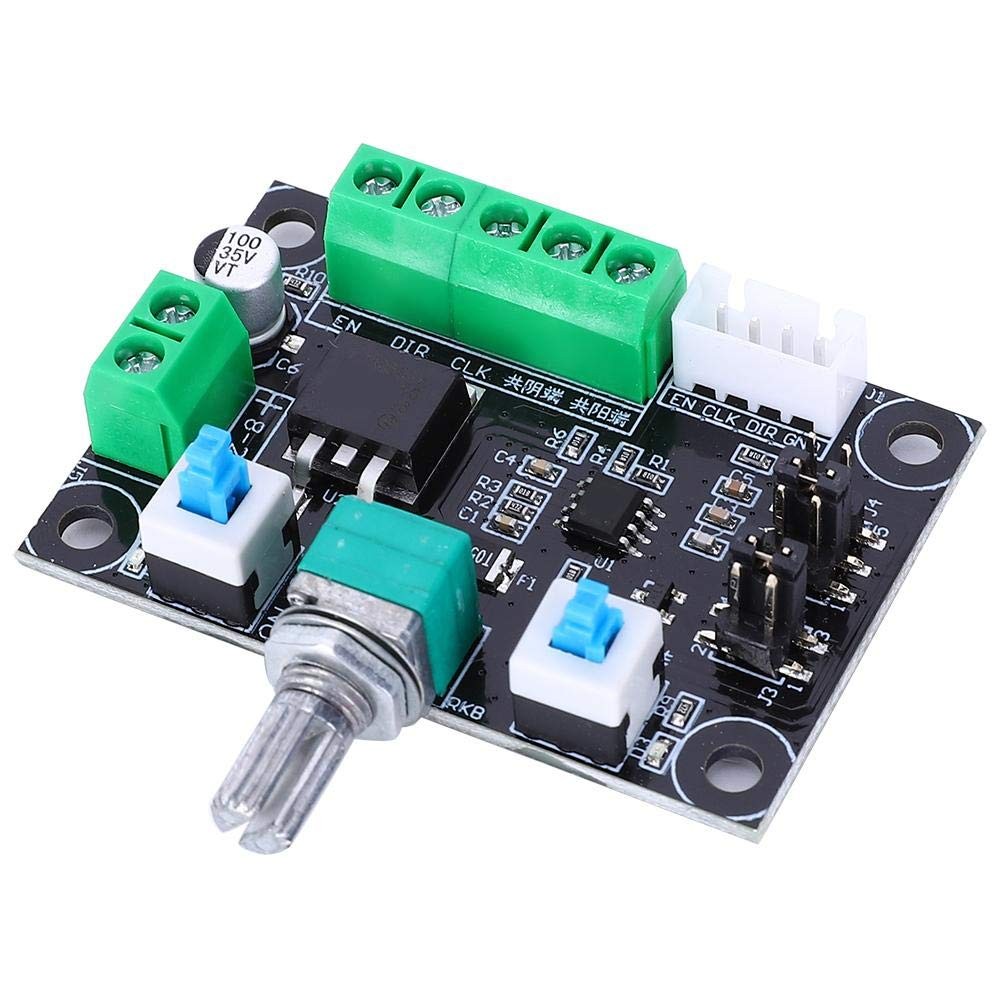

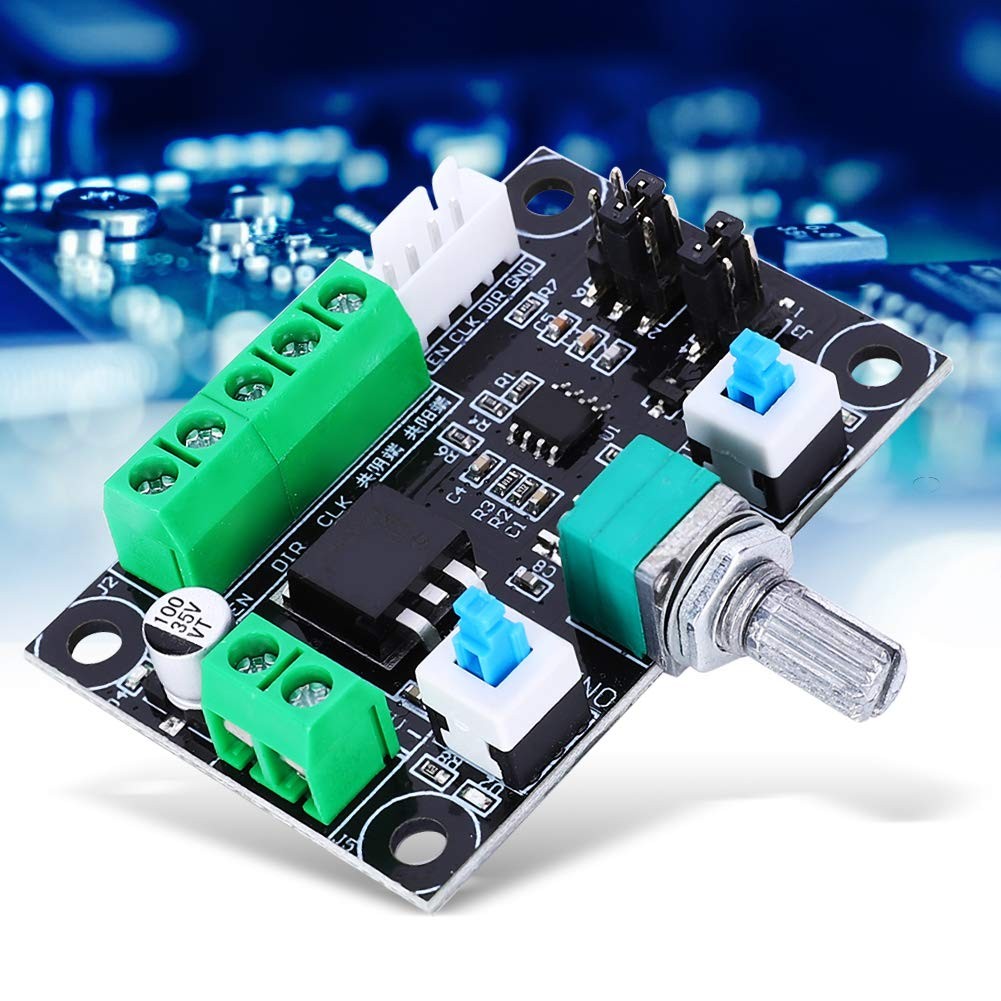

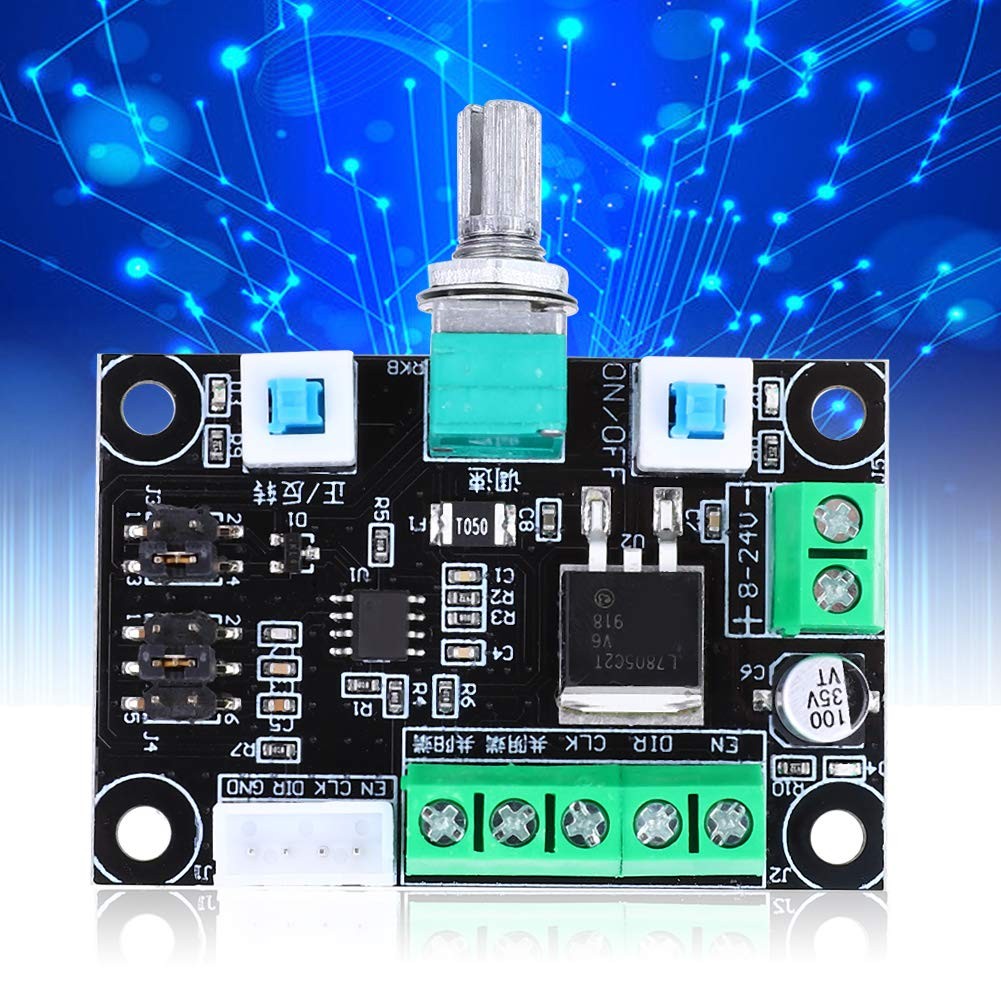

The Vikye board is the clearest signal-generation option here. Listed as a pulse generation module, it supplies step and direction signals to a stepper driver and supports both common-anode and common-cathode wiring. Its plastic body and roughly 38.6 x 58 mm footprint keep it compact. The package includes one control board, two gaskets, and one nut. The description points to a separate stepper driver and motor for actual movement, so this works best in projects where the driver is already on hand. If you need a complete controller and driver in one box, this is not that board.
Final recommendation
Start with the setup you already own. If you need controller and driver in one PCB, the integrated board is the strongest listed match. If you already have a stepper driver, the Vikye board is there to feed it step and direction signals. If you prefer a standalone controller module, the RATTM MOTOR and XY-SMH options both fit that role at close listed prices. The comparison table above shows where each sits in the listed price spread.
