When your workshop has single-phase 220V power but the machine you want to run is built around a three-phase motor, you have a few routes: replace the motor, add a rotary phase converter, or use a variable frequency drive that can both convert and control the power. The ALL-CARB Single To 3 Phase 7.5KW 10HP 220V Variable Frequency Drive Inverter CNC VFD VSD follows the third route. For $119.15, it accepts either a 1-phase or 3-phase input and produces a three-phase output, making it a possible one-box solution for a 10HP motor. But the real question is whether the specifications fit your specific motor and work environment.
Quick Verdict
This VFD is a legitimate option for a 10HP, 220V three-phase motor, given its 20A per-phase maximum current and 208-240VAC output voltage. It combines phase conversion with variable speed capability, and the dual-input design gives you flexibility to move it between a single-phase shop and a three-phase facility. The hard limit is that the output voltage stays close to the input voltage; this drive will not boost a 220V supply to 380V. For a motor that matches that voltage class, the drive does what it promises.
Who It Suits
CNC builders, lathe and mill owners, and small-shop hobbyists who have a 10HP, 220V three-phase motor and want variable speed are the natural audience. Because you can feed it with 1 phase or 3 phase, you can start with a residential/small-business supply and later migrate the same drive to a shop with true three-phase power. The 7.5KW (10HP) rating and 20A per-phase cap are consistent with a 10HP motor at 220V, as long as you don't overload the drive.
What Stands Out
- Input phase flexibility: Accepts 1 or 3 phase, so it functions as a phase converter and a VFD in one unit.
- Wide output frequency range: From 0 to 3200Hz, allowing high-speed spindle operation well beyond standard mains frequency. That's a feature you'd expect in a CNC-oriented drive.
- Voltage tolerance: 220V input with ±15% tolerance helps cope with imperfect utility power.
- Environmental specs: Operating temperature of -10°C to 40°C and humidity tolerance up to 95% (non-condensing) make it suited for a typical indoor workshop.
Meaningful Trade-Offs
The most significant trade-off is the direct relationship between input and output voltage. The output is specified as 208-240VAC, analogous to the input, so you must ensure your motor is rated for that voltage. It also means you can't use this drive to adapt a 220V single-phase line to a 380V three-phase motor. The 20A per-phase maximum output is another boundary; a larger motor would quickly exceed it. Additionally, the operating temperature range means an unheated garage in winter could fall below -10°C, so consider the environment where you'll mount the drive.
Bottom Line
At $119.15, the ALL-CARB Single To 3 Phase 7.5KW 10HP 220V VFD presents a straightforward way to run a 220V three-phase motor from a single-phase supply while gaining variable speed. Match it to a motor in the 10HP class with a 208-240V three-phase rating, respect the 20A per-phase limit, and keep the drive in a temperate indoor space. If those conditions fit, this unit delivers the phase conversion and speed control you need without requiring a separate rotary converter.
Product Note

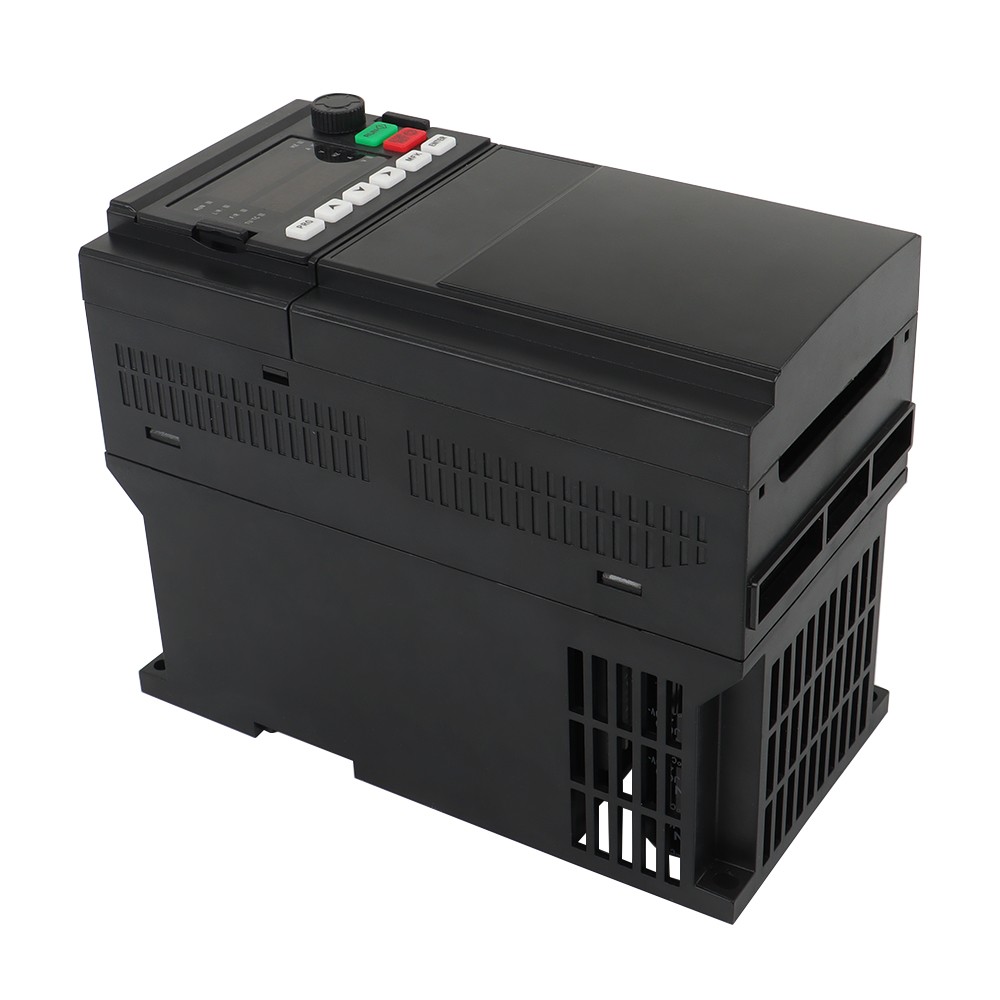

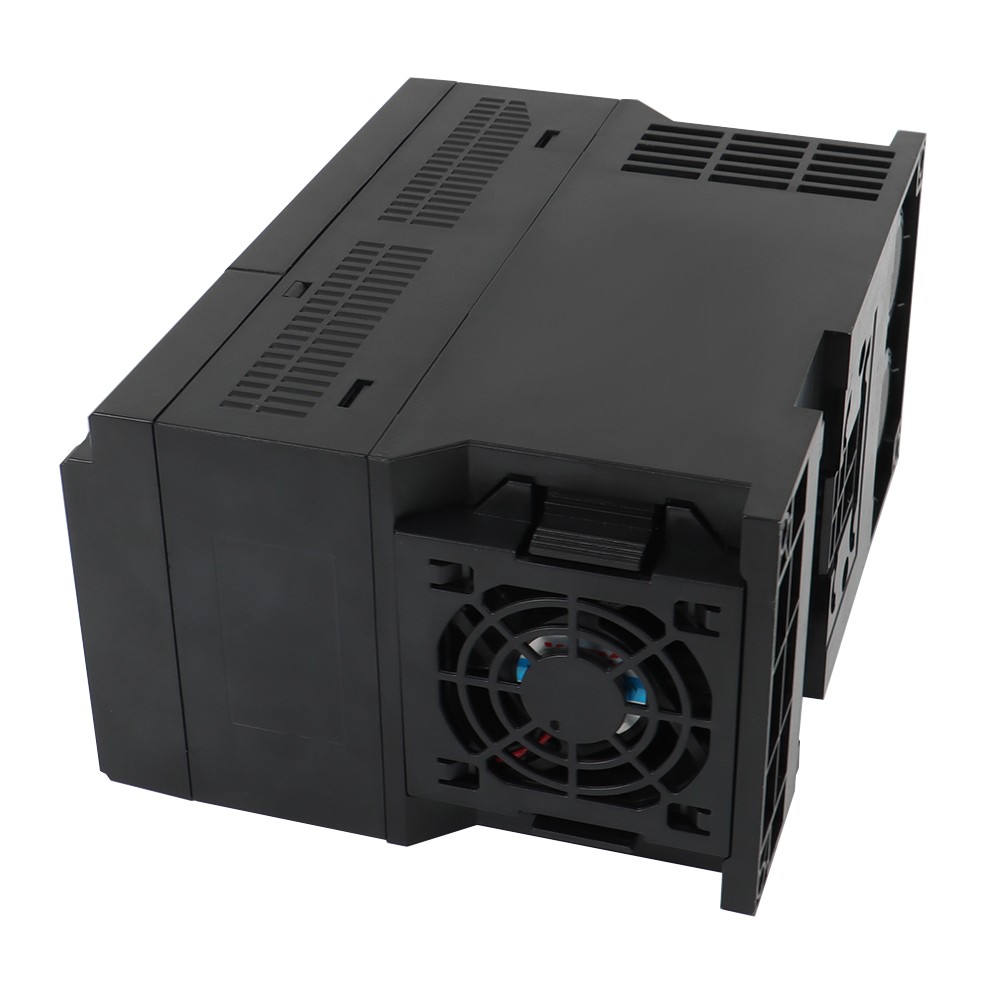

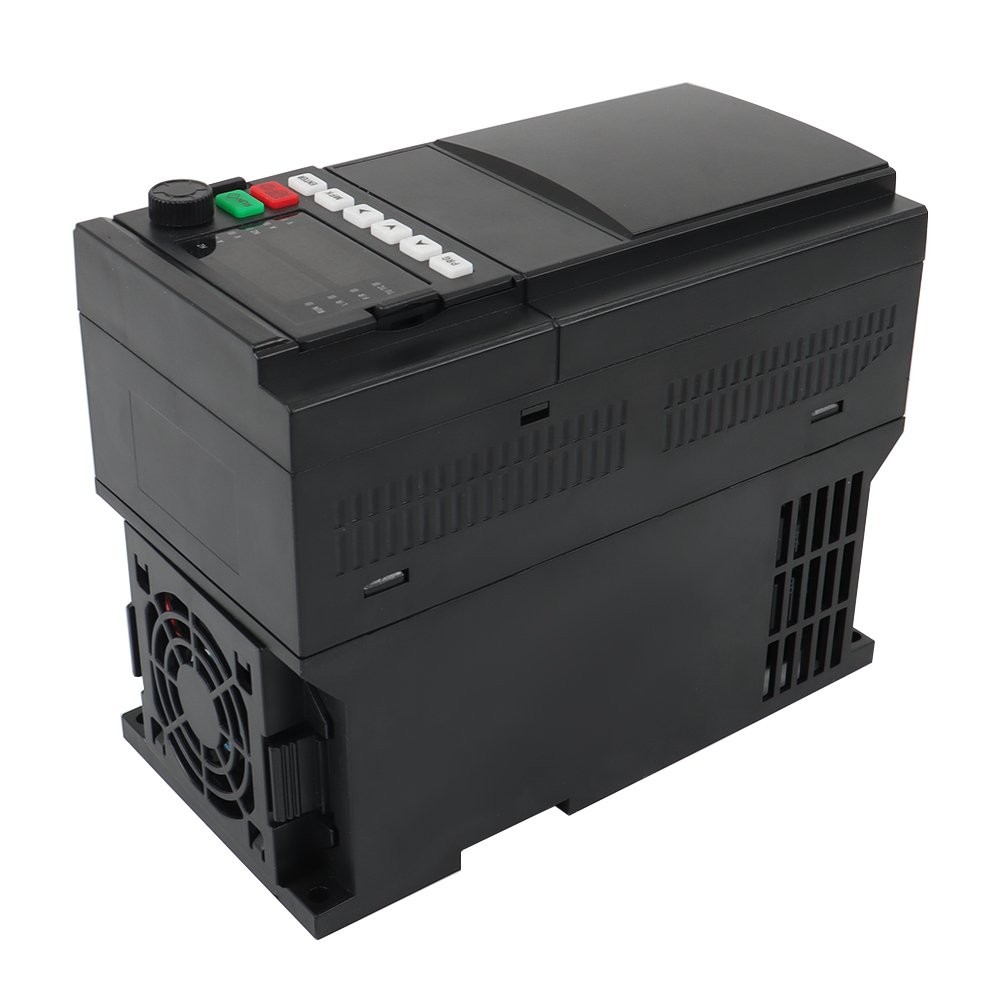

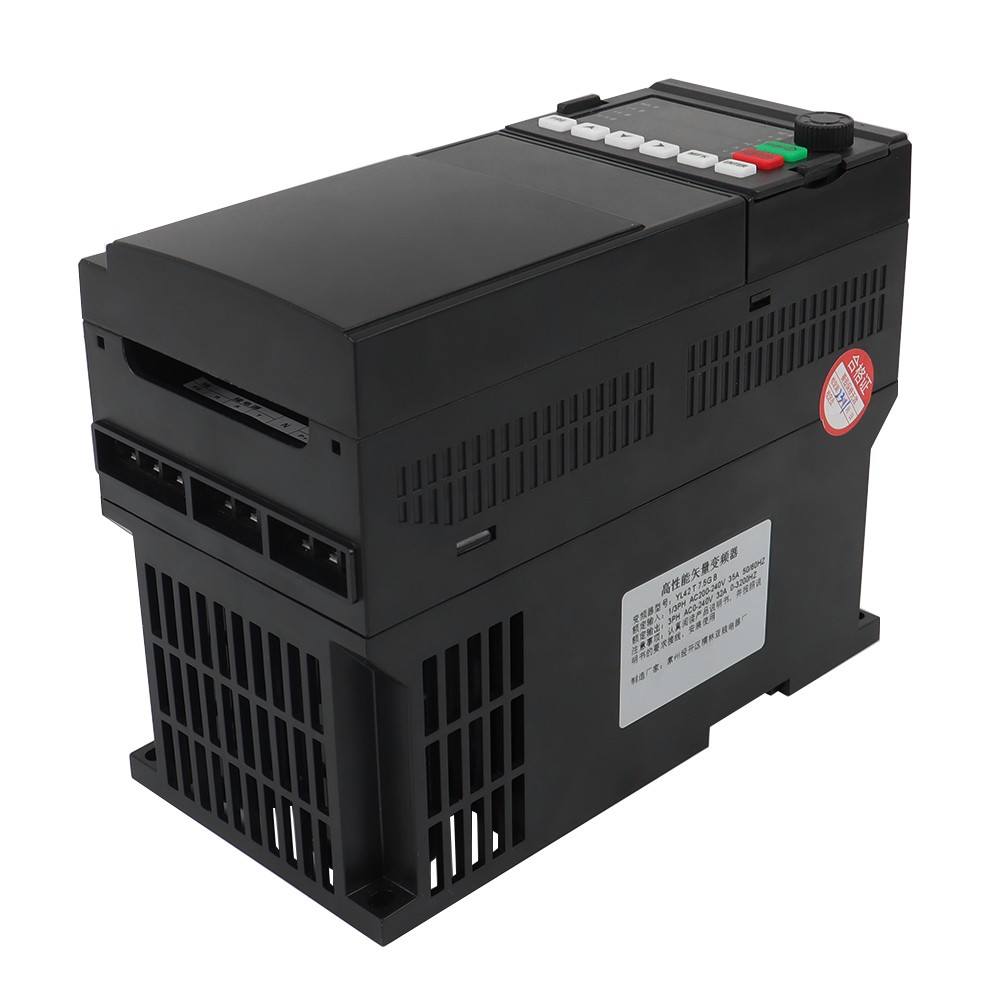

Single To 3 Phase 7.5KW 10HP 220V Variable Frequency Drive Inverter CNC VFD VSD
The reason to choose this drive is the dual-input support: connect either a single-phase or three-phase line, and it outputs a three-phase supply controlled through SPWM. The limitation to keep in mind is that the output voltage mirrors the input voltage, so it can't step up voltage for a motor that expects a higher class. For a 220V motor rated at 10HP with a 20A per-phase draw, this drive sits right at the intended operating point.
