When you're planning stepper motion control, the first fork in the road is axis count: do you need to drive a single stepper motor through a positioning move, or are you building a machine that needs multiple axes moving together? The SMH 42/57 stepper motor controller and the Nema23 4-axis CNC kit sit on opposite sides of that decision. This guide compares them by price, included components, and the jobs they fit.
Quick verdict
If your setup is a single stepper motor and you want a standalone controller, the SMH XY-SMH is the straightforward pick. If you're building a CNC router or engraver and need a complete multi-axis electronics package, the Nema23 4-axis kit is the comprehensive option.
Price and axis comparison
| Aspect | SMH 42/57 Stepper Motor Controller | Nema23 4-Axis CNC Kit |
|---|---|---|
| Listed price | USD 18.73 | USD 235.00 |
| Axis count | Single-axis | 4-axis |
| Included components | Controller only | 4 Nema23 steppers, 4 DM556S drivers, 400W 36V supply, 75W 24V supply, Mach3 motion control board, USB cable, CD disk |
| Motor support | Two-phase four-wire steppers | Nema23 steppers, 3A per phase, 425oz-in holding torque |
| Power supply | Universal DC 6-36V | Drivers use DC24-50V; kit includes both power supplies |
| Control features | Built-in operating modes, power-off memory, expandable interfaces | 256 microstep drivers and 4-axis USB Mach3 breakout board |
Where each product wins
The SMH XY-SMH is the better fit for a simple single-axis job that needs a compact controller. The Nema23 4-axis kit is the better fit for a full CNC build that needs a matched multi-axis drive system.
Product notes

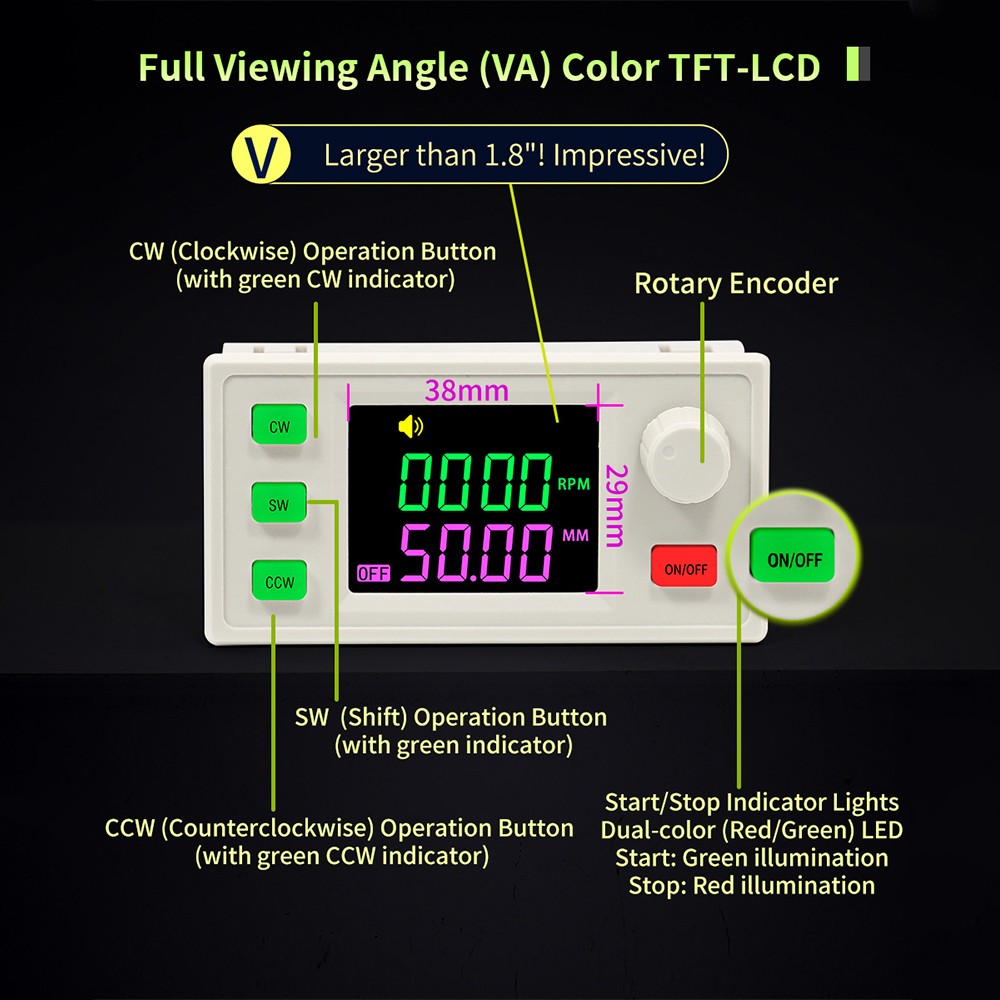

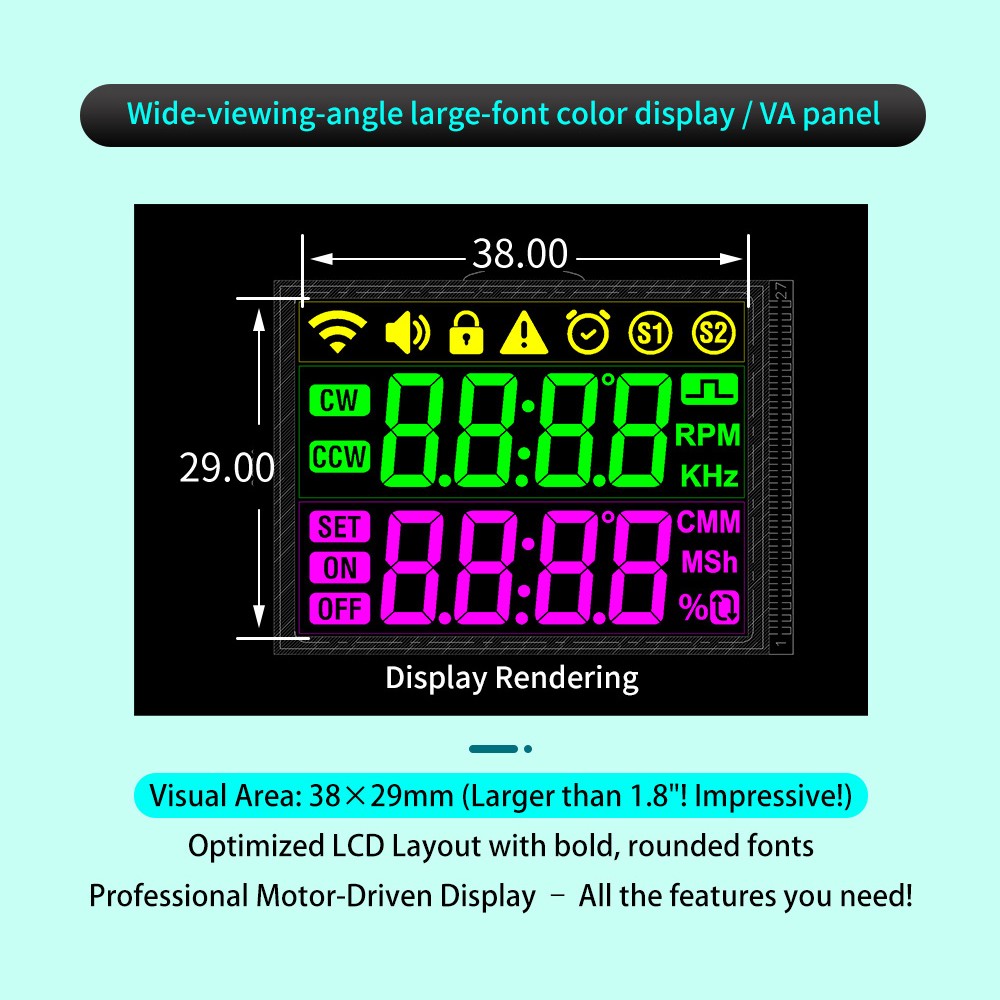

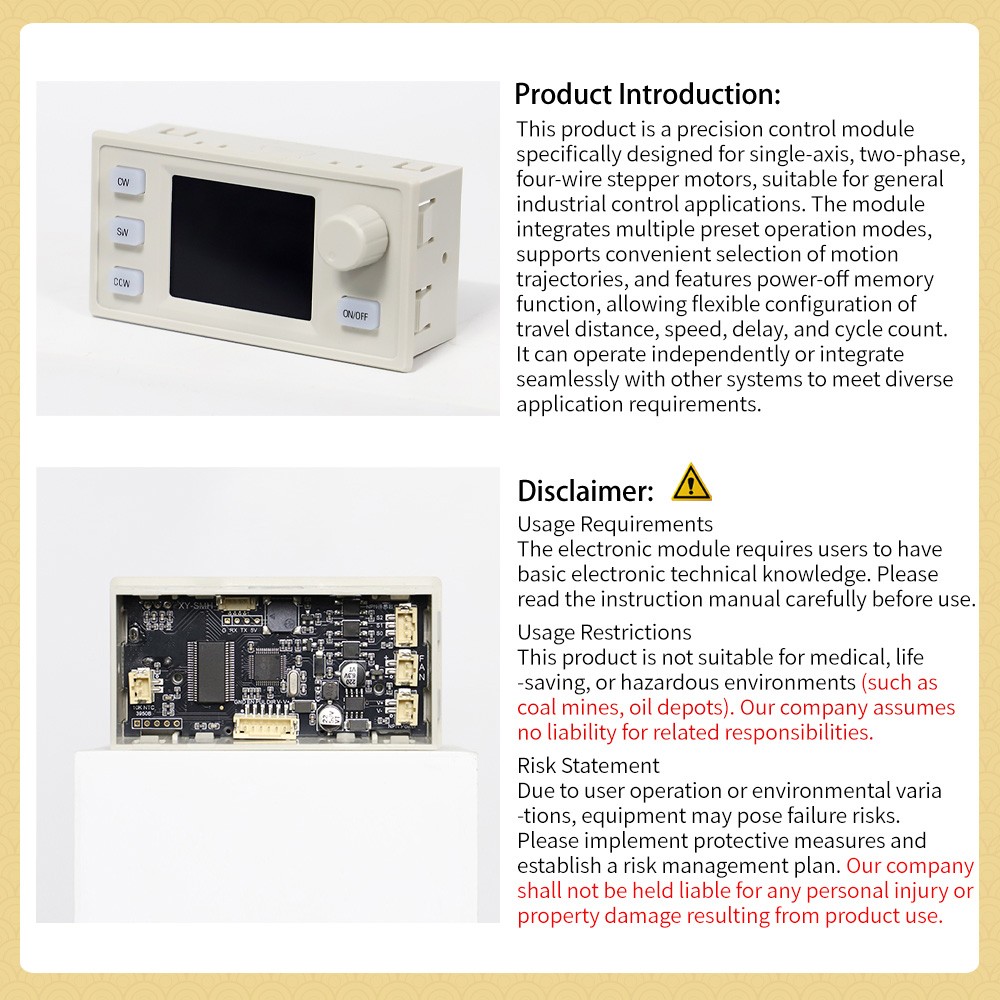

SMH XY-SMH Single-Axis Stepper Controller
At $18.73, the SMH XY-SMH is the less expensive route into stepper motion control. It is built for two-phase four-wire stepper motors and provides a forward/reverse pulse delay for positioning, along with built-in operating modes that cover standard motion profiles. The power-off memory holds your settings after a restart, and the expandable control interfaces let you connect external sensors or controls. It also accepts a universal DC 6-36V power supply and includes reverse polarity protection and over-temperature protection for industrial control use. The limitation is scope: this is a single-axis controller, so it handles only one motor at a time. You need to supply the motor, driver, and DC power separately, and it won't run a multi-axis CNC machine on its own.
Nema23 4-Axis Stepper Motor & Driver & USB Mach3 CNC Kit

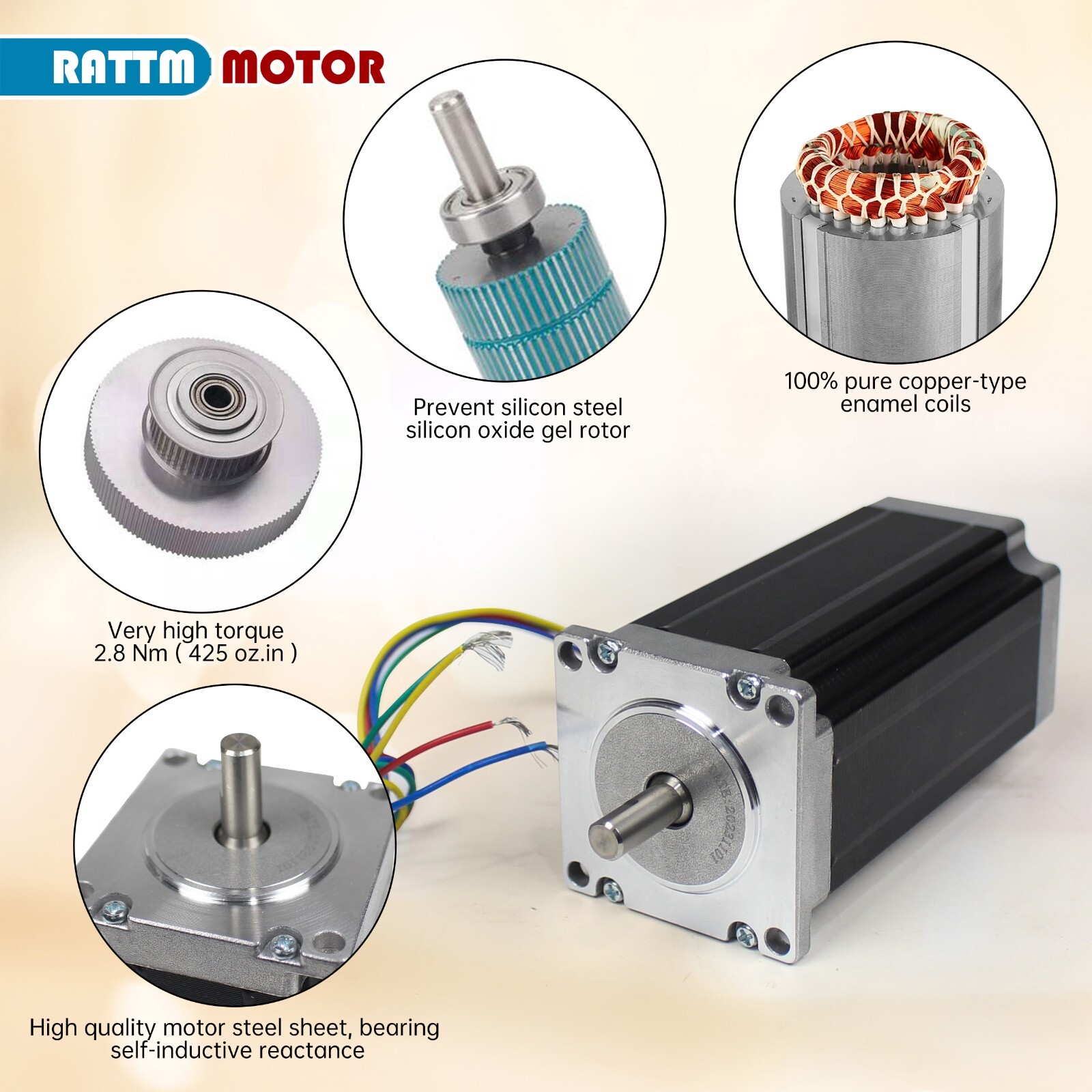

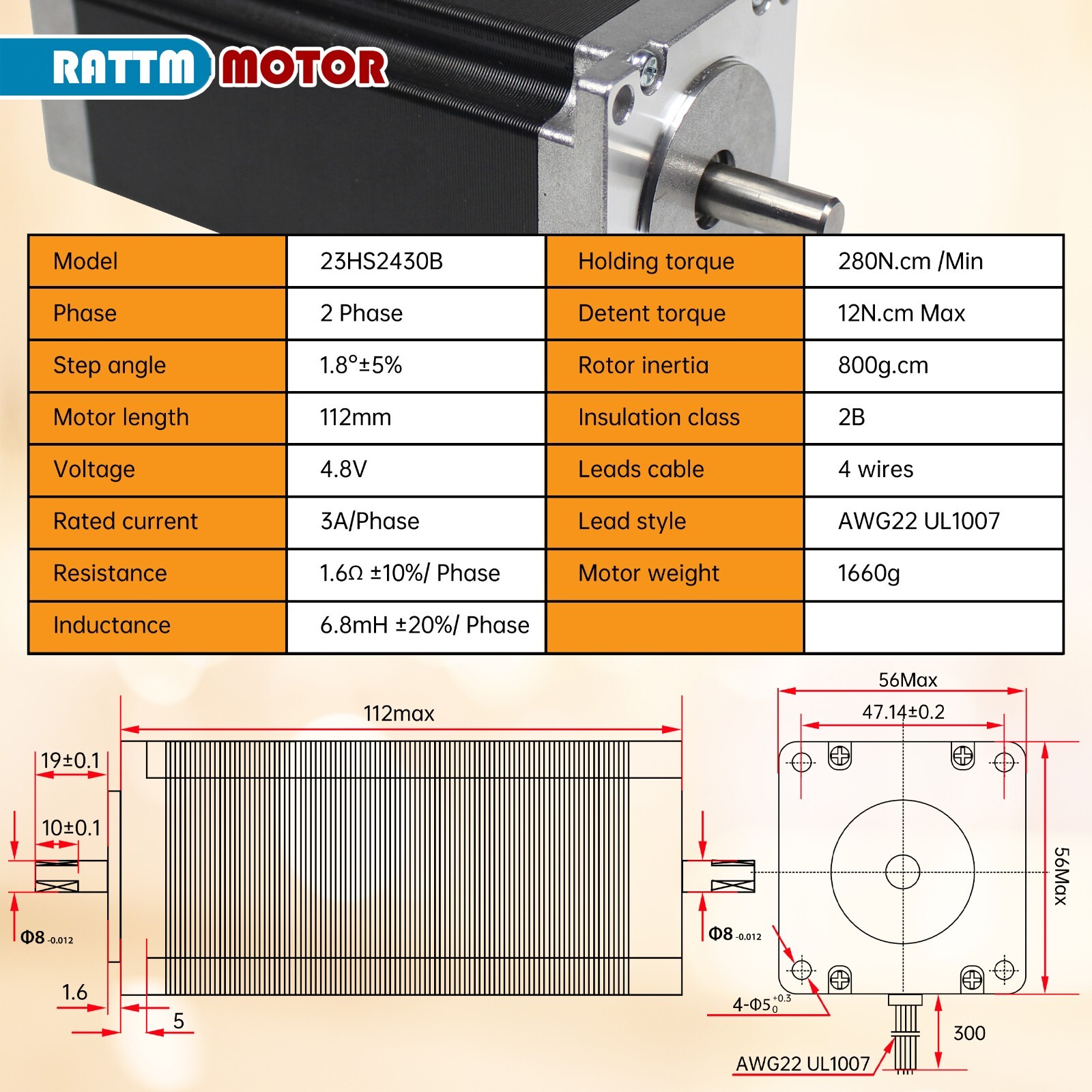

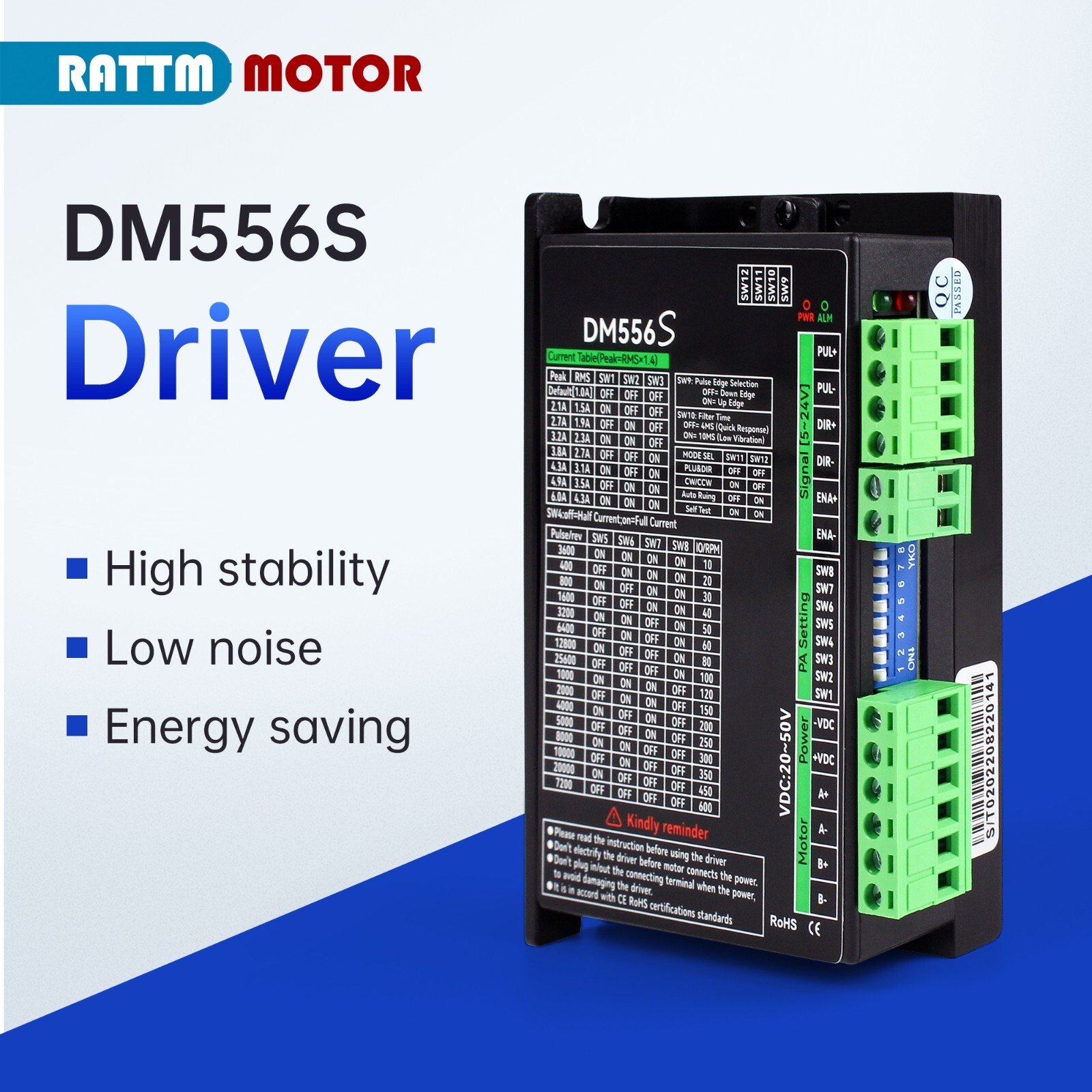

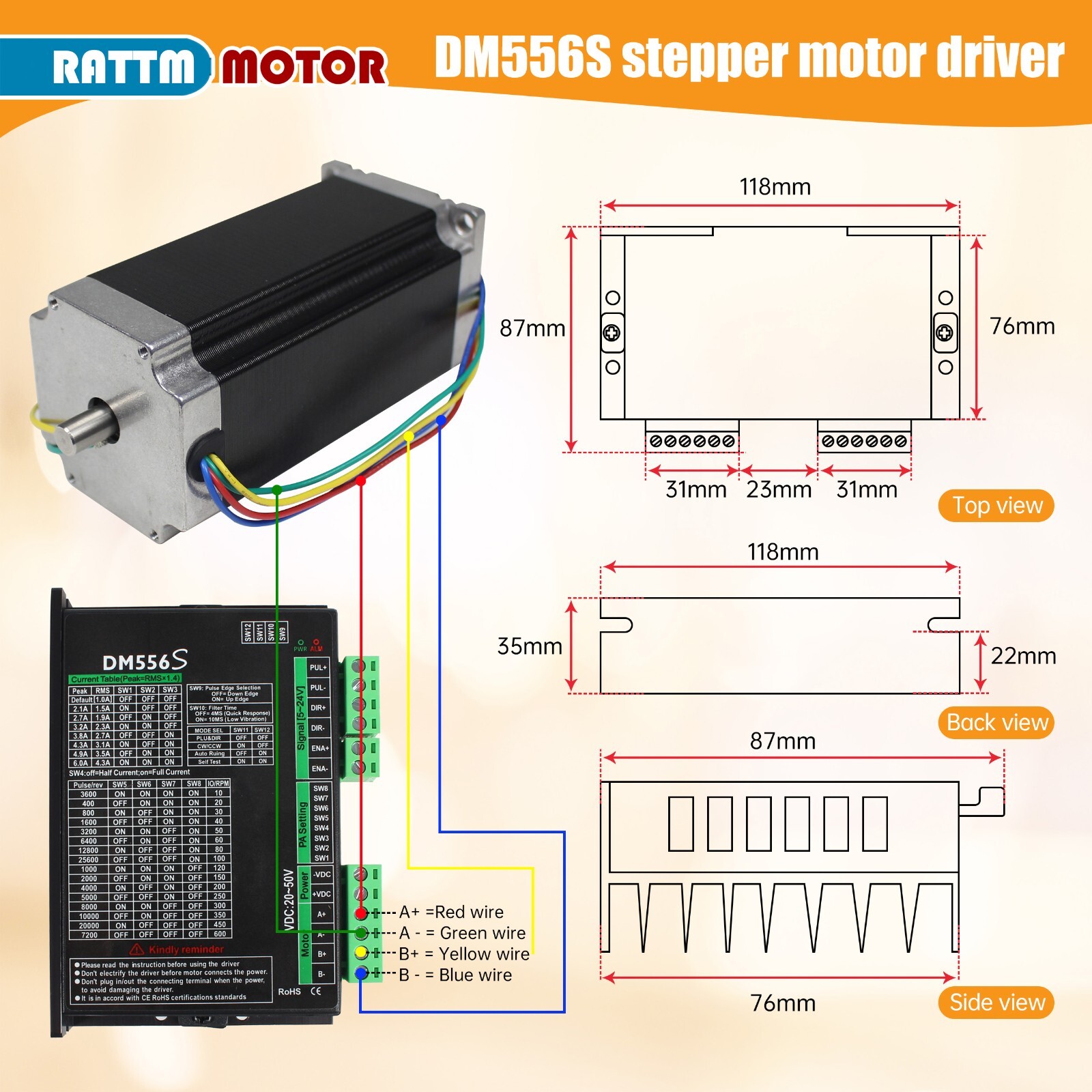

If you're assembling a CNC router, engraver, or milling machine, the RATTM MOTOR Nema23 4-axis kit is a complete electronics bundle. It includes four 23HS2430B Nema23 motors with 425oz-in holding torque, four DM556S drivers with 256 microstep, a 400W 36V DC switching power supply, a 75W 24V DC supply, a 4-axis red USB Mach3 motion control board, a USB cable, and a CD disk. At $235, this is a significant price step up, but you are not sourcing motors, drivers, and the motion control board separately. The limitation is the complexity of a four-axis rig: you have to wire all four motor/driver pairs and coordinate them through the Mach3 interface, which is more than a single-axis setup needs.
Final choice by use case
Choose the SMH XY-SMH when your build is a single stepper axis and you want the less expensive, standalone controller with flexible DC input and simple forward/reverse pulse delay control. Choose the Nema23 4-axis kit when you are building a multi-axis CNC and want motors, drivers, and the control interface matched together from the start.
